Product Overview: NXP LM75BDP Temperature Sensor

The NXP LM75BDP is a high-precision digital temperature sensor that offers an optimal combination of thermal detection with a robust I²C interface. This compact, low-power device is an ideal solution for a wide range of applications requiring temperature monitoring, such as industrial control systems, environmental monitoring, and personal electronics.

Key Features

• Accuracy: The LM75BDP provides a high degree of accuracy, with temperature readings within ±2°C over a -55°C to +125°C range, and up to ±1°C in the +25°C to +100°C range.
• Interface: It features a standard I²C-bus interface, supporting data rates of up to 400 kbps, which allows for easy integration into existing systems.
• Programmable Resolution: The sensor's resolution is programmable from 9 to 12 bits, giving designers the flexibility to prioritize between resolution and measurement speed.
• Low Power Consumption: Designed for efficiency, the LM75BDP operates with a very low standby current, making it suitable for battery-powered and energy-sensitive applications.
• Alarm Function: It includes an overtemperature alarm/interrupt output that can be set to any temperature threshold, providing an automatic response to critical events without needing constant polling by a host controller.

Applications

The versatile nature of the LM75BDP makes it an excellent choice for various applications, including:

• System thermal management
• Environmental control systems
• Personal computers and servers
• Electronic test and measurement equipment
• Telecommunication devices

Technical Specifications

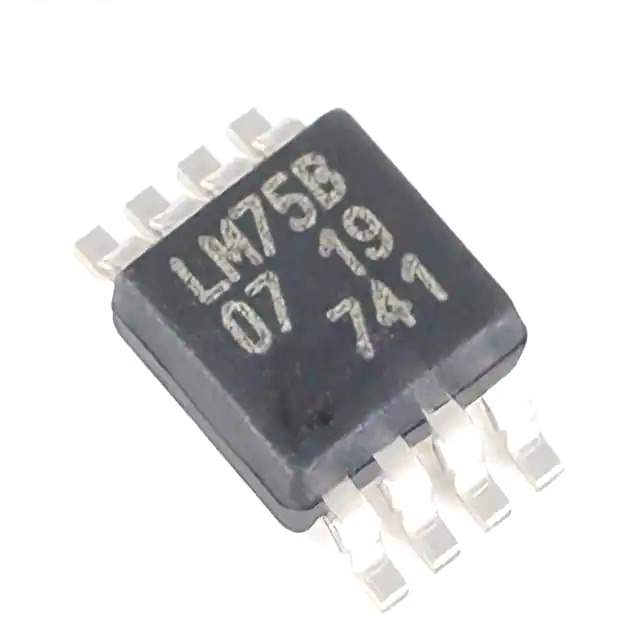

The LM75BDP operates over a supply voltage range of 2.8V to 5.5V, which accommodates most common system voltage levels. The sensor comes in a small 8-pin TSSOP package, which is both space-saving and suitable for automated assembly processes.

With its proven reliability and NXP's commitment to quality, the LM75BDP temperature sensor stands out as a smart choice for designers seeking a straightforward, accurate, and cost-effective solution for temperature sensing needs.
