Products specifications

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr NXP
Series i.MX6UL
Package Tray
Product Status Active
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 528MHz
Co-Processors/DSP Multimedia; NEON™ SIMD
RAM Controllers LPDDR2, DDR3, DDR3L
Graphics Acceleration No
Display & Interface Controllers LCD, LVDS
Ethernet 10/100Mbps (2)
USB USB 2.0 + PHY (2)
Voltage - I/O 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Security Features ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS
Mounting Type Surface Mount

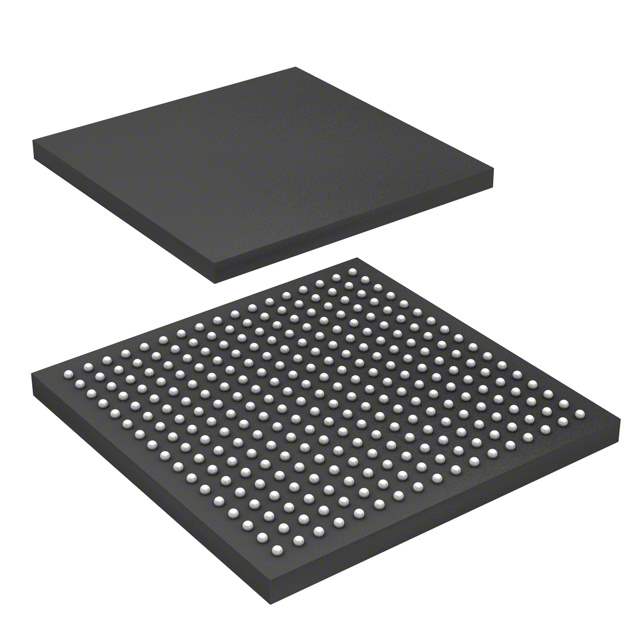

Package / Case 289-LFBGA
Supplier Device Package 289-MAPBGA (14x14)
Additional Interfaces CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART
Base Product Number MCIMX6
Standard Package 152 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 851644-MCIMX6G2AVM05AB
Ultra Librarian 3D Model Ultra Librarian MCIMX6G2AVM05AB CAD Model

Description

Product Overview: MCIMX6G2AVM05AB

The MCIMX6G2AVM05AB is a high-performance, energy-efficient processor from NXP Semiconductor's i.MX 6 series. This advanced processor is designed to deliver a balanced blend of processing power and optimized power consumption, making it an ideal choice for a wide range of applications in consumer, automotive, and industrial markets.

Key Features

  • CPU: At the heart of the MCIMX6G2AVM05AB is an ARM® Cortex®-A9 core that can run up to 1 GHz, providing a robust platform for complex computing tasks.
  • Graphics: It includes an integrated 2D/3D graphics accelerator that supports high-quality visual experiences, making it suitable for multimedia applications.
  • Memory: The processor supports a variety of memory interfaces, including 32-bit DDR3/LPDDR2, which allows for flexible and high-performance memory solutions.
  • Connectivity: With a range of connectivity options such as high-speed USB 2.0, I2C, SPI, and UART, this processor can easily interface with a wide array of peripherals and sensors.
  • Security: The device provides advanced security features, including cryptographic acceleration and secure boot, ensuring the integrity and confidentiality of user data.

Applications

Due to its versatile feature set, the MCIMX6G2AVM05AB is suitable for a multitude of applications, including but not limited to:

  • Smart devices and IoT
  • Automotive infotainment systems
  • Industrial control and automation
  • Medical devices
  • Interactive kiosks and point-of-sale terminals

Environmental and Quality Certifications

The MCIMX6G2AVM05AB processor is designed to meet the requirements of various environmental and quality standards, ensuring reliability and sustainability in product design and deployment. This includes compliance with RoHS and Halogen-free guidelines, reflecting NXP's commitment to environmental stewardship.

Support and Resources

NXP provides extensive support for the MCIMX6G2AVM05AB, including technical documentation, development tools, and software resources to facilitate product development and accelerate time-to-market. Customers can access a wide range of resources through NXP's online support portal.
