Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr NXP USA Inc.
Series i.MX6
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 528MHz
Co-Processors/DSP Multimedia; NEON™ MPE
RAM Controllers LPDDR2, DDR3, DDR3L
Graphics Acceleration No
Display & Interface Controllers Electrophoretic, LCD
Ethernet 10/100Mbps (2)
USB USB 2.0 OTG + PHY (2)
Voltage - I/O 1.8V, 2.8V, 3.3V
Temperature Range - Operating 0°C ~ 95°C (TJ)
Security Features A-HAB, ARM TZ, CSU, SJC, SNVS

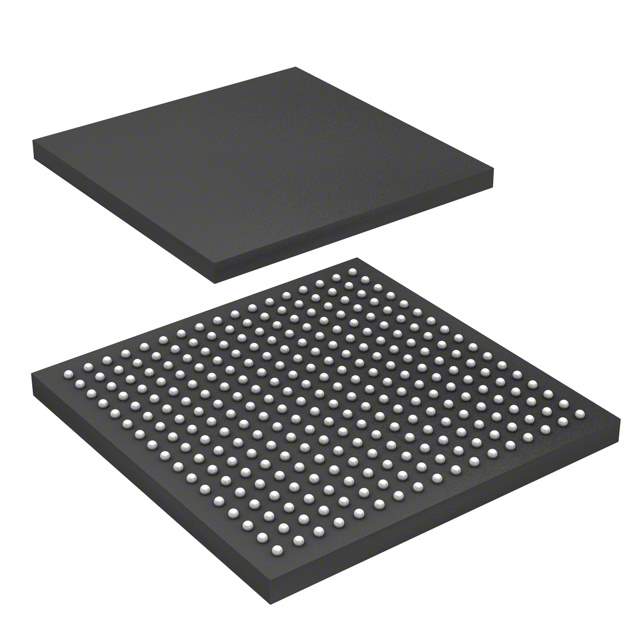

Package / Case 289-LFBGA
Supplier Device Package 289-MAPBGA (14x14)
Additional Interfaces CAN, I²C, SPI, UART
Base Product Number MCIMX6
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Other Names 935357245557
Standard Package 152
Win Source Part Number 987752-MCIMX6Y1DVM05AB
Ultra Librarian 3D Model Ultra Librarian MCIMX6Y1DVM05AB CAD Model

Description

The MCIMX6Y1DVM05AB is a high-performance, ultra-efficient processor designed by NXP, featuring the advanced implementation of the single ARM Cortex-A7 core, which operates at speeds up to 528 MHz. This processor is part of the i.MX 6ULL series, which is a power-efficient and cost-effective family of processors intended for a wide range of industrial and consumer applications.

Features:

  • Core: ARM Cortex-A7 operating at up to 528 MHz
  • Memory: 16-bit DDR3/DDR3L, LPDDR2 support
  • Graphics: Parallel LCD Display up to WXGA (1366x768)
  • Connectivity: Dual Ethernet with L2 Switch, multiple USB 2.0 interfaces
  • Audio: High-quality audio with multiple interfaces
  • Security: Advanced security features including High Assurance Boot (HAB) and cryptographic cipher engines
  • Power Management: Integrated power management module with a wide range of supported input voltages
  • Package: 289BGA package for robust board design and simple assembly

Applications:

The versatile nature of the MCIMX6Y1DVM05AB makes it suitable for a broad array of applications. These include:

  • Internet of Things (IoT) devices
  • Wearable technology
  • Smart home systems
  • Industrial controls
  • Healthcare monitoring devices
  • Agricultural and environmental sensors

NXP's i.MX 6ULL series processors provide a balance between performance and power consumption, making them ideal for applications where efficiency and cost are critical. The MCIMX6Y1DVM05AB is designed to support the rapid development of smart, connected devices, and is backed by NXP's long-term support and reliability, ensuring that it remains at the forefront of technology for years to come.

Environmental and Certification:

This product is compliant with the RoHS directive and is qualified for industrial temperature ranges, making it suitable for harsh environments.
