Products specifications

Categories Integrated Circuits (ICs)
Manufacturer NXP
Series MPC82xx
Packaging Tray
Core Processor PowerPC G2_LE
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 400MHz
Co-Processors/DSP Communications; RISC CPM
RAM Controllers DRAM, SDRAM
Graphics Acceleration No
Ethernet 10/100 Mbps (2)
USB USB 2.0 (1)
Voltage - I/O 3.3V
Operating Temperature Range -40°C ~ 105°C (TA)
Package 516-BBGA
Manufacturer Package 516-FPBGA (27x27)
Additional Interfaces I2C, SCC, SMC, SPI, UART, USART
Win Source Part Number 789246-MPC8271CVRTIEA
Popularity Medium
Supply and Demand Status Limited
Family Name MPC8271
Introduction Date September 22, 2004
ECCN 3A991.a.2
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MPC8271CVRTIEA CAD Model

Description

NXP MPC8271CVRTIEA Microprocessor

The NXP MPC8271CVRTIEA is a high-performance microprocessor designed to cater to the demanding requirements of networking and telecommunications applications. Built on the PowerQUICC II architecture, this integrated communications processor is adept at managing complex data and control plane tasks, making it an ideal choice for a wide array of embedded systems.

This processor is part of the MPC82xx family that integrates a core built on Power Architecture technology, ensuring robust processing capabilities with a high level of instruction execution efficiency. The MPC8271CVRTIEA operates at a core speed of 400 MHz, which provides a balanced trade-off between processing power and power consumption, making it suitable for power-sensitive applications.

One of the standout features of the MPC8271CVRTIEA is its versatility in connectivity options. It includes a multitude of integrated peripherals such as dual Fast Ethernet controllers, PCI interface, I2C interface, and a host of serial communication interfaces. These features enable the processor to handle multiple high-speed data streams concurrently, which is crucial for network routers, switches, and other communication infrastructure components that require reliable data throughput.

The device also boasts a 32-bit data bus and supports up to 2 GB of DDR SDRAM memory, ensuring ample bandwidth for data-intensive tasks. Furthermore, the processor's memory controller is designed to provide high-speed access to both the system RAM and the cache, which significantly improves the overall system performance.

For security-sensitive applications, the MPC8271CVRTIEA comes equipped with a Security Engine that offers encryption and decryption services, including support for algorithms like DES, 3DES, AES, and others. This feature ensures that data remains secure during transmission without placing additional load on the main processor.

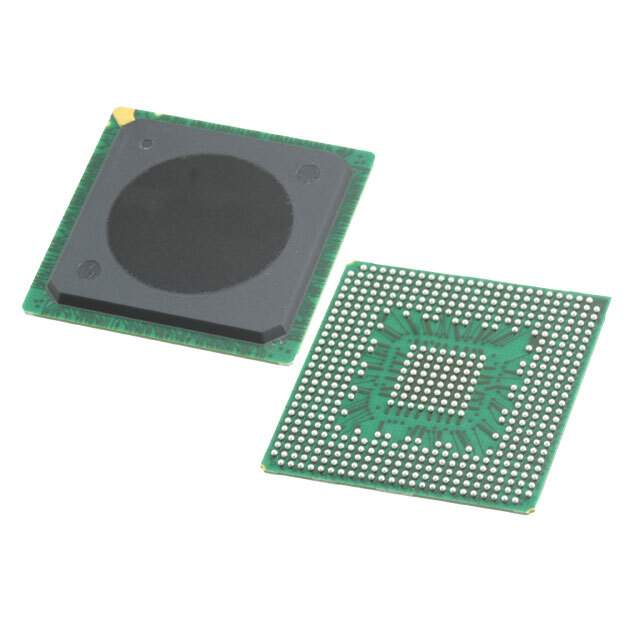

In terms of packaging, the MPC8271CVRTIEA is available in a 516-pin BGA package, which is designed to minimize the footprint on the printed circuit board and facilitate efficient heat dissipation.

Overall, the NXP MPC8271CVRTIEA is a powerful and reliable processor that provides a comprehensive solution for networking equipment manufacturers looking to develop high-speed, secure, and efficient communication devices.
