Same model may have multiple batches, images only for reference.

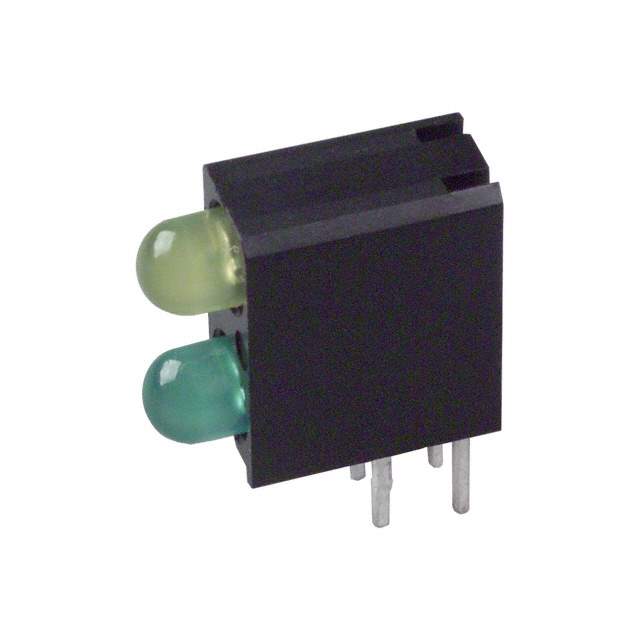

5530132F Real Image
Same model may have multiple batches, images only for reference.

5530132F

Part No 5530132F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2HI 3MM YEL OVER GREEN PC MN / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Yellow (x 1) Diffused, Tinted 2.1V 10mA Through Hole, Right Angle
Datasheet
5530132F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Manufacturer Dialight
Packaging Bulk
Color Green (x 1), Yellow (x 1)
Wavelength - Peak 563nm, 585nm
Configuration 2 High
Current 10mA
Millicandela Rating 16mcd Green, 6.3mcd Yellow
Lens Type Diffused, Tinted
Voltage Rating 2.1V
Mounting Through Hole, Right Angle
Base Product Number 5530132
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 553-0132F,350-1824
Standard Package 50
Win Source Part Number 1331721-5530132F
Ultra Librarian 3D Model Ultra Librarian 5530132F CAD Model

Description

The Dialight electronic component is a LED circuit board indicator with a 2 high configuration.

  • Colors: Green and yellow
  • Voltage Rating: 2.1V
  • Standard Package: 50 pieces
  • Mounting: Through hole, right angle
  • Viewing Angle: Not specified
  • Millicandela Rating: 16mcd for green and 6.3mcd for yellow
  • Wavelength-Peak: 563nm for green and 585nm for yellow
  • Current: 10mA
  • Lens Type: Diffused, tinted
  • REACH: Unaffected
  • ROHS: ROHS3 compliant
