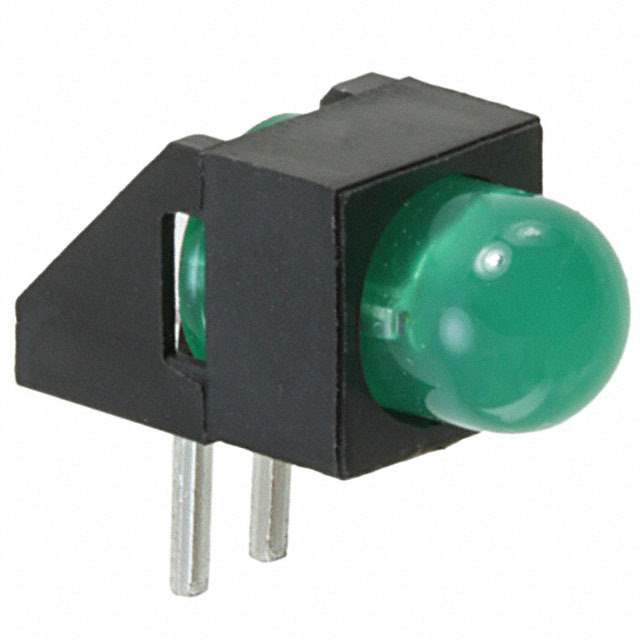

HLMP-3680-B00B2 Real Image
Same model may have multiple batches, images only for reference.

HLMP-3680-B00B2

Part No HLMP-3680-B00B2
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM 5V GAP GRN RA HOUSING
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 10mA
Millicandela Rating 1.6mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style/Size Round with Domed Top, 5mm (T-1 3/4)
Voltage Rating 5V
Mounting Through Hole, Right Angle
Win Source Part Number 068156-HLMP-3680-B00B2
Popularity Medium
Supply and Demand Status Balance
Application Field Used in LED Lighting, Portable Devices, Industrial, Consumer Electronics
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-3680-B00B2 CAD Model

Description

The HLMP-3680-B00B2 is a green LED manufactured by Broadcom Limited.

  • Voltage Rating: 5V
  • Millicandela Rating: 1.6mcd
  • Viewing Angle: 60°
  • Configuration: Single Unit
  • Mounting: Through Hole, Right Angle
  • Lens Style/Size: Round with domed top, 5mm (T-1 3/4)
  • Peak Wavelength: 565nm
  • Package Quantity: 2k pcs
