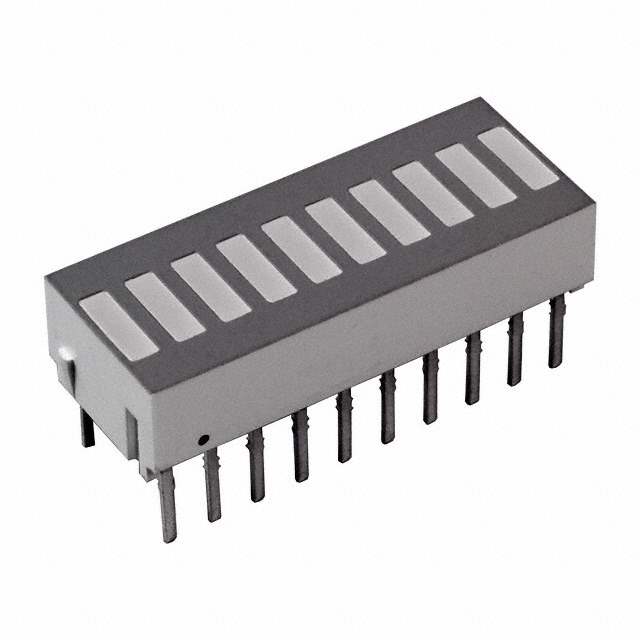

HDSP-4836 Real Image
Same model may have multiple batches, images only for reference.

HDSP-4836

Part No HDSP-4836
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED BAR GRAPH 10SEG RED/YLW/GRN
Datasheet
HDSP-4836 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Color Green (x 2), Red (x 4), Yellow (x 4)
Wavelength - Peak 566nm, 635nm, 583nm
Configuration Bar - 10 Wide, DIP
Current 30mA Green, 30mA Red, 20mA Yellow
Millicandela Rating 1.9mcd Green, 3.5mcd Red, 1.9mcd Yellow
Lens Style/Size Rectangle with Flat Top, 5.08mm x 1.52mm
Voltage Rating 2.1V Green, 2.1V Red, 2.2V Yellow
Mounting Through Hole
Win Source Part Number 204713-HDSP-4836
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-4836 CAD Model

Description

The HDSP-4836 is a rectangular bar configuration LED manufactured by Broadcom Limited. It is available in green, red, and yellow colors and is mounted in a through-hole package. This LED has a voltage rating of 2.1V for green and red colors and 2.2V for yellow color.

  • Millicandela Rating: 1.9mcd (Green/Yellow), 3.5mcd (Red)
  • Wavelength Peak: 566nm (Green), 635nm (Red), 583nm (Yellow)
  • Current Rating: 30mA (Green/Red), 20mA (Yellow)
