NXP MPC8306CVMACDCA Microprocessor Overview

The NXP MPC8306CVMACDCA is a versatile and powerful microprocessor that is part of the MPC83xx PowerQUICC II Pro family. This processor is designed to meet the requirements of embedded applications in networking, telecommunications, industrial control, and automation. With its high level of integration and performance efficiency, the MPC8306CVMACDCA is an excellent choice for designers looking to optimize system cost and power consumption without sacrificing processing capability.

Key Features

• Core: The MPC8306CVMACDCA is built on the e300c3 core, which is based on the Power Architecture technology, operating at speeds up to 266 MHz.
• Memory Support: It includes a DDR2/DDR3 memory controller, providing flexible memory options for system designers. This allows for scalable memory solutions that can match the specific needs of the application.
• Connectivity: The processor features dual Ethernet controllers for robust networking capabilities. These controllers support Fast Ethernet operations, making them suitable for applications requiring high-speed data transfers and connectivity.
• Peripheral Support: It also includes a host of integrated peripherals such as USB 2.0, UARTs, SPI, I2C, and GPIOs, which can be used to interface with a wide range of external devices.
• Power Efficiency: Designed with power efficiency in mind, the MPC8306CVMACDCA incorporates power management features that enable reduced power consumption in various operational modes, making it ideal for power-sensitive applications.

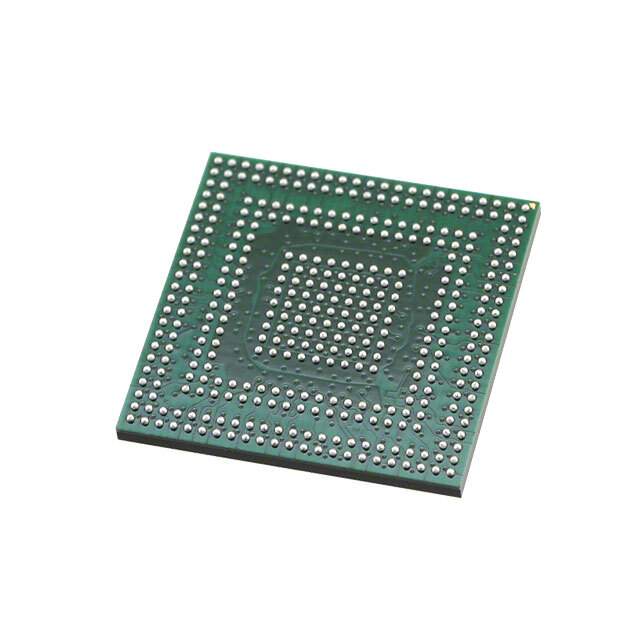

• Package: The processor comes in a 369-pin MAPBGA package, which is conducive to compact and space-constrained designs.

Applications

The NXP MPC8306CVMACDCA microprocessor is suited for a variety of applications, including but not limited to:

• Network routers and switches
• Wireless access points
• Industrial control systems
• Automation equipment
• Printers and imaging devices

With its combination of performance, connectivity, and integration, the NXP MPC8306CVMACDCA is a microprocessor that can serve as the heart of many embedded systems, offering a balanced solution for complex and demanding applications.
