Products specifications Report Issue?

Categories Integrated Circuits (ICs)

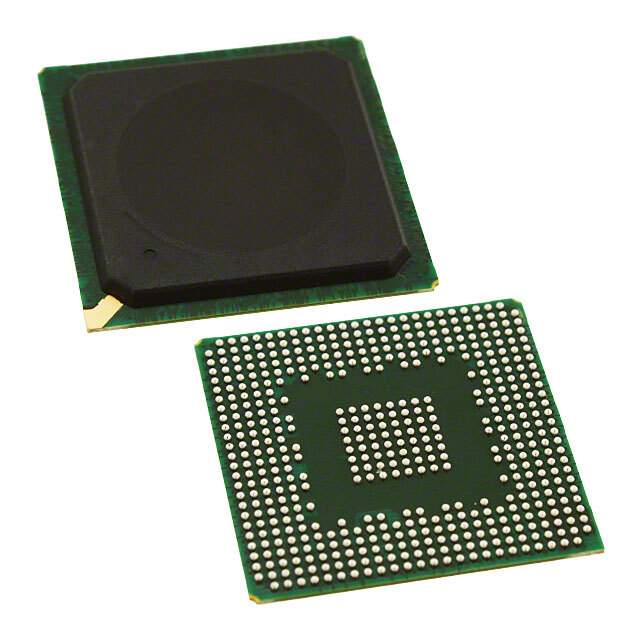

Features PowerPC e300c3 Microprocessor IC series 1 Core, 32-Bit 400MHz 516-TEPBGA (27x27)
Manufacturer NXP
Series MPC83xx
Package Tray
Part Status Obsolete
Core Processor PowerPC e300c3
Speed 400MHz
Operating Temperature Range -40°C ~ 105°C (TA)
Package 516-BBGA Exposed Pad
Case / Package 516-TEPBGA (27x27)
Family Name MPC83
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1 FRE
HTSUS 8542.31.0001
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 927889-MPC8313ECVRAGDB
Ultra Librarian 3D Model Ultra Librarian MPC8313ECVRAGDB CAD Model

Description

NXP MPC8313ECVRAGDB Product Overview

The MPC8313ECVRAGDB is a high-performance, power-efficient processor designed by NXP Semiconductors. As part of the PowerQUICC II Pro family, it is tailored to meet the demanding requirements of networking, telecommunications, and industrial control applications. This processor is built on Power Architecture technology, ensuring robust performance for embedded systems.

At the heart of the MPC8313ECVRAGDB is an e300 core that operates at speeds up to 333 MHz, providing the computational power needed for complex tasks. The processor also features an integrated security engine that supports a variety of algorithms, including DES, 3DES, AES, MD5, SHA-1, and SHA-256, making it an ideal choice for applications requiring secure data transactions.

The device comes equipped with a rich set of peripherals, including dual Gigabit Ethernet controllers, USB 2.0 support, and a PCI Express interface, offering high-speed connectivity options. Additionally, it supports DDR2 memory, which enhances the overall system performance by providing fast data transfer rates and increased bandwidth.

For storage requirements, the MPC8313ECVRAGDB includes a Serial ATA (SATA) controller, enabling direct connection to hard drives. It also features a 32-bit PCI interface for additional expansion capabilities. With its integrated DUART and I2C modules, this processor can easily manage serial communication tasks, further increasing its versatility.

The processor's advanced power management capabilities ensure energy efficiency, making it suitable for applications where power conservation is critical. Its low-power design does not compromise performance, ensuring that the MPC8313ECVRAGDB can handle demanding workloads while maintaining energy efficiency.

In summary, the NXP MPC8313ECVRAGDB is a feature-rich, secure, and energy-efficient processor that provides a solid foundation for a wide range of applications. Its integration of multiple connectivity options, security features, and support for high-speed memory makes it a powerful and flexible solution for today's complex embedded systems.
