Products specifications Report Issue?

Categories Integrated Circuits (ICs)

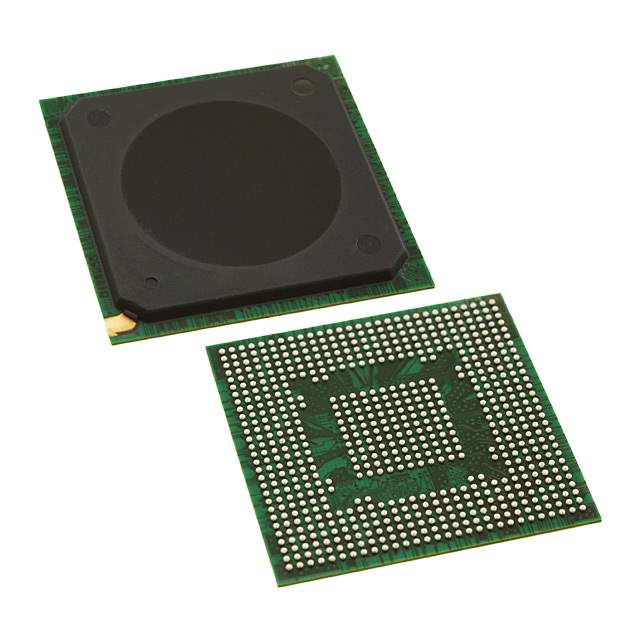

Features PowerPC e300c4s Microprocessor IC series 1 Core, 32-Bit 400MHz 689-TEPBGA II (31x31)
Manufacturer NXP
Series MPC83xx
Package Tray
Part Status Obsolete
Core Processor PowerPC e300c4s
Speed 400MHz
Operating Temperature Range -40°C ~ 125°C (TA)
Package 689-BBGA Exposed Pad
Case / Package 689-TEPBGA II (31x31)
Family Name MPC83
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 8542.31.0001
Quantity per package 27
Popularity High
Supply and Demand Status Balance
Win Source Part Number 927913-MPC8378CVRAGD
Ultra Librarian 3D Model Ultra Librarian MPC8378CVRAGD CAD Model

Description

Overview of NXP MPC8378CVRAGD

The NXP MPC8378CVRAGD is a high-performance PowerQUICC II Pro processor that is designed to meet the demands of a wide range of embedded applications. This processor is built on Power Architecture technology, offering an optimal balance of processing power, integrated features, and connectivity to handle complex tasks in networking, telecommunications, and industrial markets.

Key Features

  • Core Technology: At the heart of the MPC8378CVRAGD is an e300 core built on Power Architecture, which operates at speeds up to 800 MHz, providing robust computational capabilities.
  • Integrated Memory Controller: The processor includes a DDR2/DDR3 memory controller, which allows for fast and efficient access to memory, enhancing overall system performance.
  • Connectivity: A host of connectivity options are available, including dual integrated Gigabit Ethernet controllers for high-speed networking, a PCI Express interface for connecting to high-bandwidth peripherals, and USB 2.0 for universal connectivity.
  • Security Engine: For applications that require secure data transactions, the MPC8378CVRAGD comes with an integrated security engine that supports encryption and decryption algorithms, ensuring data integrity and protection.
  • Power Efficiency: Designed with power efficiency in mind, the processor is suitable for applications where power consumption is a critical factor.

Applications

The versatility of the MPC8378CVRAGD makes it ideal for a variety of applications, including:

  • Enterprise and home networking equipment such as routers, switches, and gateways.
  • Telecommunications infrastructure like wireless base stations and network control modules.
  • Industrial control systems requiring fast processing and connectivity.
  • Embedded computing platforms that demand high-security features.

Technical Specifications

The NXP MPC8378CVRAGD processor boasts technical specifications that ensure it can handle a multitude of tasks efficiently:

  • Processor Core: e300c3
  • Core Speed: Up to 800 MHz
  • Memory Support: DDR2/DDR3 SDRAM
  • Networking: Dual Gigabit Ethernet Controllers
  • PCI Express Interface: Yes
  • USB Interfaces: USB 2.0 with integrated PHY
  • Security: Integrated security engine
  • Power Architecture Technology: Yes

With its powerful processing capabilities, comprehensive connectivity options, and advanced security features, the NXP MPC8378CVRAGD is a versatile and reliable choice for a broad range of high-performance embedded applications.
