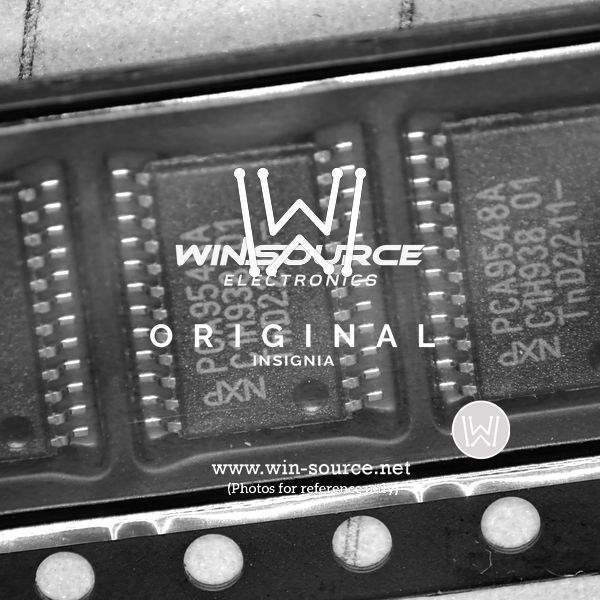

The PCA9548A is an octal bidirectional translating switch controlled via the I²C bus. Designed by NXP Semiconductors, this device is essential for applications where multiple I²C devices with the same address need to be connected to a single I²C bus. The PCA9548A provides a seamless interface to expand the I²C bus from one to eight separate channels that can be controlled individually, enabling communication with up to eight identical devices.

Key Features

• Channel Selection: Through I²C commands, any of the eight bidirectional translating switches can be selected independently, allowing for a variety of configurations and flexibility in connecting multiple devices.
• Operating Power Supply Voltage: The device operates at a power supply voltage ranging from 2.3V to 5.5V, making it suitable for a wide array of applications and compatible with both standard and low-voltage I²C devices.
• High Noise Filter: An integrated noise filter on the SCL/SDA inputs suppresses spikes on the bus lines, ensuring data integrity during transmission.
• Low Standby Current: The PCA9548A is optimized for low power consumption, with a standby current of just 2μA (typical), which is ideal for power-sensitive applications.

Applications

The PCA9548A is versatile and can be used in a variety of applications, including:

• Server Management
• Medical Equipment
• Industrial Control Systems
• Telecommunications Infrastructure

Technical Specifications

Overall, the PCA9548A from NXP is a reliable and efficient solution for expanding I²C bus capabilities in complex systems, ensuring smooth and flexible communication among multiple devices.
