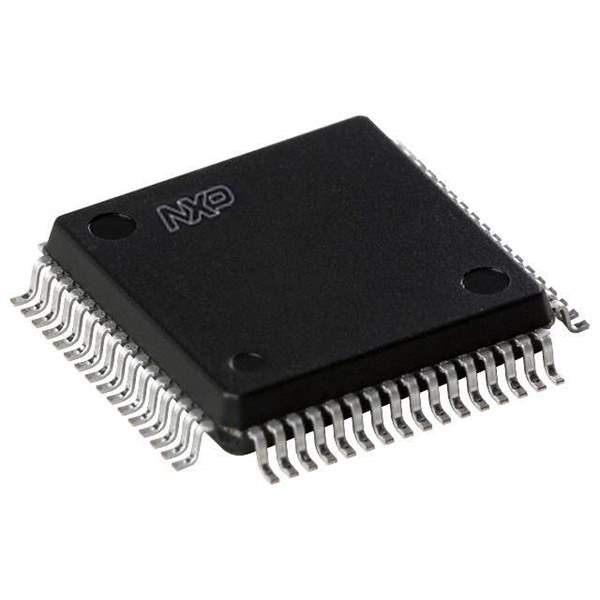

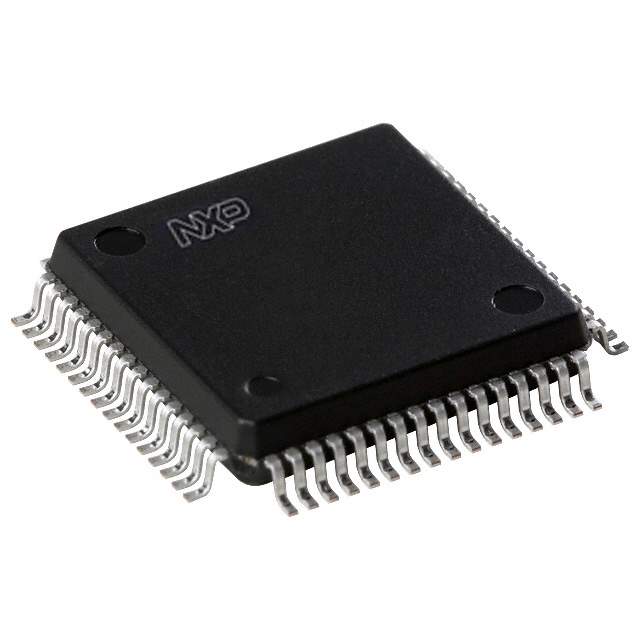

Products specifications

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Purpose Demodulator
Applications Consumer Audio
Number of Channels 2
Supply Voltage - Operating 4.75 V to 5.5 V
Temperature Range - Operating -20°C to 70°C (TA)
Case / Package 64-QFP (14x14)
Win Source Part Number 053503-TDA9875A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TDA9875A CAD Model

Description

The NXP TDA9875A is a high-performance signal processor specifically designed for the advanced television and multimedia markets. This integrated circuit (IC) is a versatile solution, aimed at enhancing audio experiences in various consumer electronics applications, such as televisions, set-top boxes, and home theater systems.

Key Features

  • Multi-Standard Support: The TDA9875A supports a wide range of audio standards, making it a flexible choice for global product deployment. It can decode NICAM, A2, and AM sound standards, among others.
  • Dual Analog Inputs: It comes equipped with dual analog inputs, which allows for easy integration with other analog components within a system.
  • High-Quality Sound: With its advanced digital signal processing capabilities, the TDA9875A ensures high-quality sound reproduction, providing users with an immersive listening experience.
  • Integrated Sound Demodulator: The IC includes an integrated sound demodulator, which simplifies the circuit design and reduces the overall bill of materials for the product.
  • Volume Control: Offers a programmable volume control that can be adjusted to suit user preferences or to compensate for varying input signal levels.

Applications

The TDA9875A is ideal for a range of applications where audio quality and processing capability are paramount. Its robust feature set makes it suitable for:

  • Television sets
  • Digital and analog broadcasting receivers
  • Set-top boxes
  • Home theater systems
  • Other multimedia devices

Technical Specifications

The TDA9875A operates over a wide power supply range and has a compact package that is conducive to space-constrained designs. Its technical specifications include:

  • Supply voltage: 8.5V to 12V
  • Operating temperature range: -20°C to 70°C
  • Package: QFP44 (Plastic Quad Flat Package)

For those looking to integrate superior audio processing into their products, the NXP TDA9875A presents a reliable and cost-effective solution. Its combination of features and performance makes it a standout choice in the field of audio signal processing.
