Same model may have multiple batches, images only for reference.

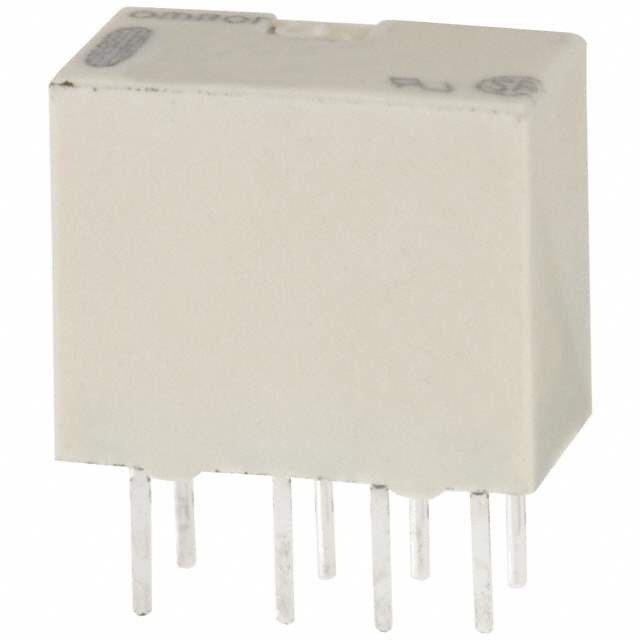

G6JU-2P DC5 Real Image
Same model may have multiple batches, images only for reference.

G6JU-2P DC5

Part No G6JU-2P DC5
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 5V
Datasheet
G6JU-2P DC5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Latching, Single Coil
Coil Current 20.4mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 3.75 VDC
Operate Time 3ms
Release Time 3ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 100 mW
Coil Resistance 245.5 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 040385-G6JU-2P DC5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G6JU-2P DC5 CAD Model

Description

The Omron Electronics Inc-EMC Div 040385-G6JU-2P DC5 telecom relay is a DPDT (2 Form C) relay with a coil voltage of 5VDC and a contact rating of 1A. It has a switching voltage of 125VAC and 110VDC max and operates at a temperature range of -40°C to 85°C.

  • Relay Type: DPDT (2 Form C)
  • Coil Voltage: 5VDC
  • Contact Rating: 1A
  • Switching Voltage: 125VAC / 110VDC max
  • Operating Temperature: -40°C to 85°C
  • Coil Resistance: 245.5 Ohms
  • Coil Current: 20.4mA
  • Operate Time: 3ms
  • Release Time: 3ms
  • Mounting Style: Through-Hole
  • Coil Type: Latching, Single Coil
  • Package: Tube/Rail
