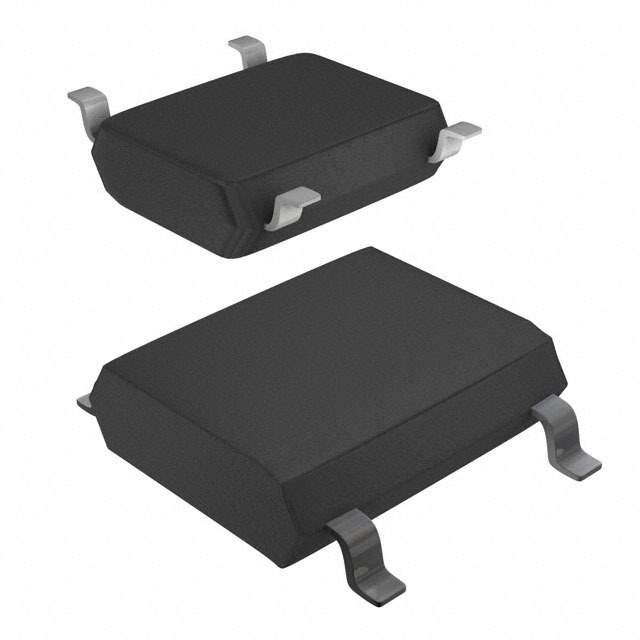

Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 800mA
Voltage - Forward (Vf) (Max) @ If 1.05V @ 400mA
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 112897-DBB08G-TM-E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DBB08G-TM-E CAD Model

Description

The DBB08G-TM-E from ON Semiconductor is a high-performance bridge rectifier designed to offer efficient and reliable rectification for AC to DC conversion in various electronic applications. This bridge rectifier is a critical component in power supply units, providing the necessary conversion for devices that require a steady and stable DC voltage.

Key Features

  • High Forward Current: With a forward current of 0.8A, this bridge rectifier can handle a moderate amount of current, making it suitable for small to medium power requirements.
  • Repetitive Peak Reverse Voltage: The device can withstand repetitive peak reverse voltages of up to 600V, ensuring durability and reliability in high-voltage applications.
  • Low Forward Voltage Drop: The low forward voltage drop minimizes power loss and improves efficiency, which is essential for maintaining the performance of the end application.
  • High Surge Current Capability: The DBB08G-TM-E is capable of handling high surge currents, providing protection against unexpected spikes in current, which could otherwise damage electronic components.
  • Compact Design: The bridge rectifier comes in a DB package, which is known for its small size, making it an excellent choice for applications where space is at a premium.

Applications

The ON Semiconductor DBB08G-TM-E bridge rectifier is versatile and can be used in a variety of applications such as:

  • Power Management Systems
  • Consumer Electronics
  • Telecommunication Devices
  • Industrial Equipment
  • LED Lighting

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the DBB08G-TM-E is no exception. It is manufactured to meet high standards of performance and reliability, ensuring that it performs consistently over a wide range of operating conditions.

Environmental Compliance

The DBB08G-TM-E bridge rectifier is environmentally friendly, complying with RoHS directives, which restricts the use of certain hazardous materials found in electrical and electronic products.
