Products specifications

Win Source Part Number WS1196683-DF10S2
Win Source Part Number Cross
Manufacturer onsemi
Category Discrete Semiconductor Products Diodes Bridge Rectifiers
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Current - Reverse Leakage @ Vr 3 µA @ 1000 V
Ultra Librarian 3D Model Ultra Librarian DF10S2 CAD Model

Description

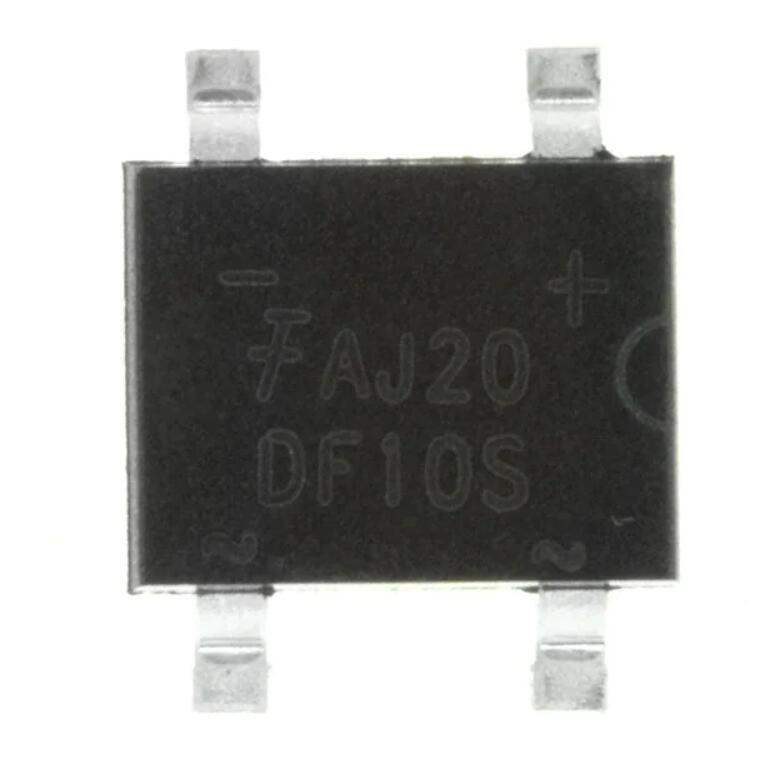

ON Semiconductor DF10S2 Bridge Rectifier

The DF10S2 is a high-quality bridge rectifier produced by ON Semiconductor, a leading manufacturer in the semiconductor industry known for its reliable and efficient components. This bridge rectifier is designed to convert an input of alternating current (AC) into a steady direct current (DC), which is essential for a wide range of electronic applications.

Key Features

  • High Current Capability: The DF10S2 is capable of handling a high forward current of up to 1.0 A, making it suitable for a variety of power conversion applications.
  • Low Forward Voltage Drop: Its low forward voltage drop ensures high efficiency, which is critical for minimizing energy loss during the rectification process.
  • High Surge Current Capability: This device can withstand high surge currents, providing robust performance and reliability in demanding situations.
  • Compact Design: The DF10S2 comes in a small package, making it an ideal choice for space-constrained applications.
  • Wide Operating Temperature Range: It operates effectively over a broad temperature range, ensuring stability and functionality in various environments.

Electrical Specifications

  • Repetitive Peak Reverse Voltage: 200 V
  • Maximum RMS Voltage: 140 V
  • Maximum DC Blocking Voltage: 200 V
  • Typical Thermal Resistance: 17°C/W junction to lead

Applications

The DF10S2 is versatile and can be used in various electronic circuits, including:

  • Power supplies
  • Adapters
  • Lighting systems
  • Consumer electronics
  • Telecommunication devices

ON Semiconductor's DF10S2 bridge rectifier is a robust component that provides efficient and reliable performance for converting AC to DC. Its small footprint, high current capability, and low power loss make it an excellent choice for designers looking to optimize their power management solutions.

For detailed information, including pin configurations, full electrical characteristics, and mechanical specifications, refer to the official DF10S2 datasheet provided by ON Semiconductor.
