Products specifications

Categories Isolators
Manufacturer ON Semiconductor
Packaging Tube
Technology Optical Coupling
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 35kV/μs
Propagation Delay tpLH / tpHL (Maximum) 400ns, 400ns
Pulse Width Distortion (Maximum) 100ns
Rise / Fall Time 60ns, 60ns
Current - Output High, Low 2A, 2A
Current - Peak Output 3A
Voltage - Forward (Vf) 1.5V
Current - DC Forward (If) (Maximum) 25mA
Voltage - Output Supply 16V ~ 30V
Temperature Range - Operating -40°C ~ 100°C
Mounting Style SMD

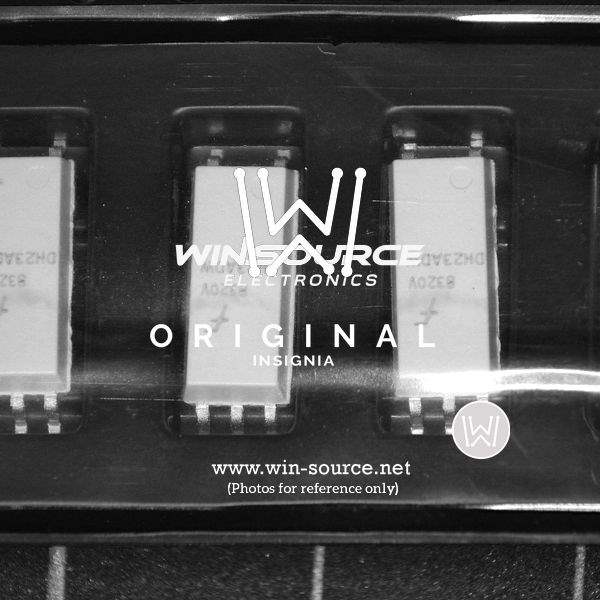

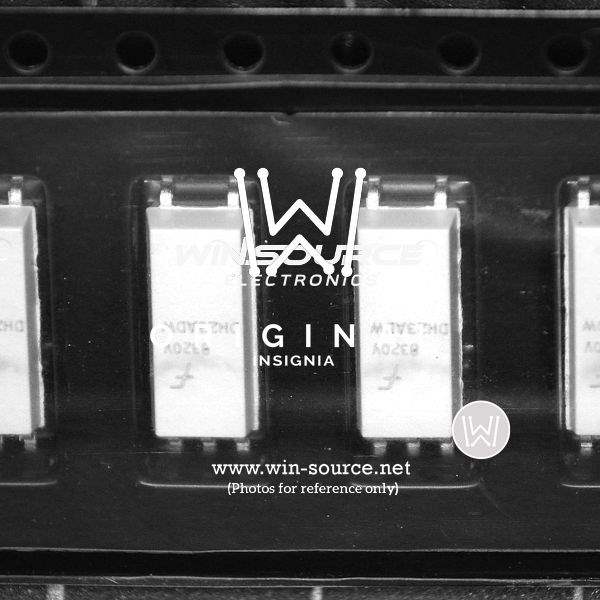

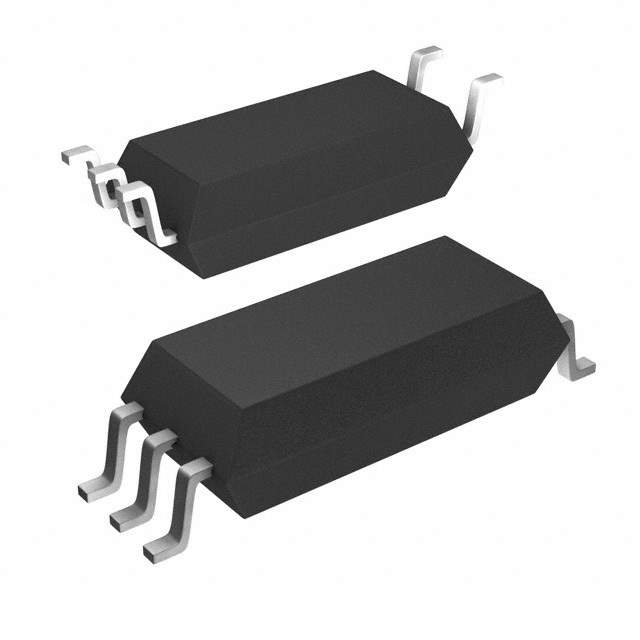

Manufacturer Package 6-SOIC (0.362", 9.20mm Width), 5 Leads
Supplier Device Package 5-SOP
Approvals UL
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1175020-FOD8320
Manufacturer Homepage www.fairchildsemi.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name FOD8320
Introduction Date March 07, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian FOD8320 CAD Model

Description

The ON Semiconductor FOD8320 is a high-performance, integrated gate drive optocoupler designed for high-speed switching applications. This advanced optocoupler is specifically tailored for driving power MOSFETs and IGBTs that operate in modern electronic systems requiring high efficiency, compactness, and robust operation.

Key Features

  • High Noise Immunity: The FOD8320 offers excellent common-mode noise immunity, ensuring stable operation in electrically noisy environments.
  • High Isolation Voltage: With a reinforced insulation layer, this optocoupler provides a high isolation voltage of 5kVrms, which is crucial for safety and reliability in high-voltage applications.
  • Fast Switching Speeds: It boasts fast propagation delays and minimal pulse width distortion, which are essential for high-frequency switching tasks.
  • Integrated Under-Voltage Lockout (UVLO): The built-in UVLO feature ensures that the gate driver is only active when the supply voltage is sufficient, protecting the power semiconductor devices from malfunction.
  • Wide Operating Temperature Range: The device is operational over a temperature range of -40°C to +100°C, making it suitable for industrial applications.

Applications

The FOD8320 is ideal for a variety of applications, including:

  • Industrial Inverters
  • AC and Brushless DC Motor Drives
  • Power Supplies and Converters
  • Renewable Energy Systems (Solar Inverters, Wind Turbines)

Technical Specifications

  • Output Current: 2.5A (peak)
  • Supply Voltage: 15V to 30V
  • Propagation Delay Time: 500ns (max)
  • CMR: >35kV/μs at Vcm = 1500V

The ON Semiconductor FOD8320 is a reliable and efficient solution for designers looking to enhance the performance of their power conversion systems. With its robust design and advanced features, this optocoupler is an excellent choice for driving high-power semiconductors in a wide range of electronic applications.
