Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Type Display
Applications Video
Mounting Through Hole
Case / Package 7-220H
Win Source Part Number 205952-LA78041
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LA78041 CAD Model

Description

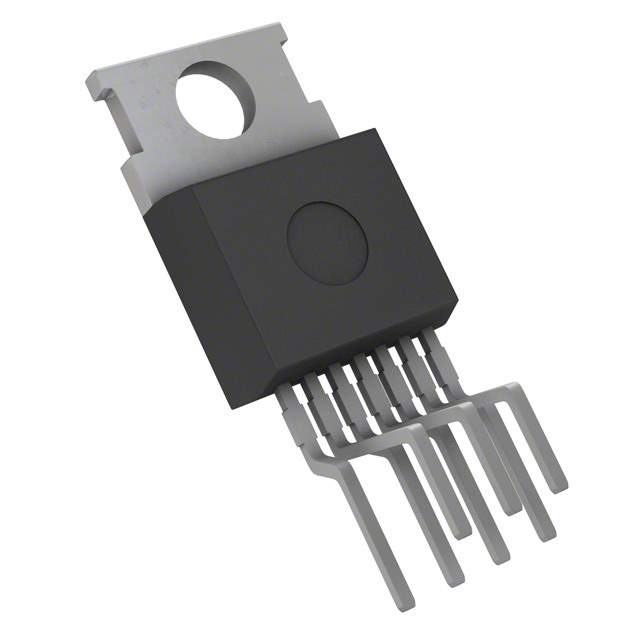

ON Semiconductor LA78041 Overview

The LA78041 from ON Semiconductor is a high-performance vertical deflection output IC designed for television and CRT display systems. This integrated circuit is optimized to deliver a high-quality performance in combination with low power consumption, making it an ideal choice for modern CRT applications. The LA78041 is well-suited for use in various types of TV sets, including color TVs, black and white TVs, and monitors that require vertical deflection output.

Key Features

  • High Slew Rate: The LA78041 offers a high slew rate that ensures sharp and accurate vertical scanning, contributing to the crispness and clarity of the displayed images.
  • Thermal Protection: Incorporated thermal protection circuitry helps prevent the IC from overheating, thereby enhancing the reliability and longevity of the product.
  • Low Power Consumption: Designed with energy efficiency in mind, the LA78041 minimizes power usage, which is beneficial for reducing electricity costs and environmental impact.
  • Excellent Vertical Linearity: It provides excellent vertical linearity, which is crucial for maintaining the geometric integrity of the displayed images.
  • Pump-Up Circuit: The built-in pump-up circuit ensures stable operation during varying load conditions, maintaining consistent performance.

Applications

The LA78041 is versatile and can be used in a wide range of applications that require vertical deflection output. Its primary use is in CRT-based television sets and monitors, but it can also be found in other display technologies that utilize vertical deflection systems.

Technical Specifications

Some of the technical specifications of the LA78041 include a maximum supply voltage of 35V, a pump-up charge current of 9mA, and an operating temperature range from -20°C to +85°C. The IC is packaged in a 7-pin single inline package (SIP), which allows for easy integration into various circuit designs.

Conclusion

The LA78041 from ON Semiconductor is a robust vertical deflection output IC that offers a blend of high performance, energy efficiency, and reliability. Its slew rate, thermal protection, and excellent linearity make it a go-to component for designers and manufacturers of CRT-based display systems. Whether you are working on a standard TV set or a specialized monitor, the LA78041 is engineered to deliver the quality and performance that today's consumers expect.
