Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging AMMO PACKAGE
Status Not For New Designs
Type Class AB
Output Type 4-Channel (Quad)
Max Output Power x Channels @ Load 24W x 4 @ 4 Ohm
Supply Voltage - Operating 8 V to 16 V
Features Mute, Short-Circuit and Thermal Protection
Mounting Through Hole
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 25-HZIP
Dimension 25-SSIP
Win Source Part Number 041272-LV47009P-E
Ultra Librarian 3D Model Ultra Librarian LV47009P-E CAD Model

Description

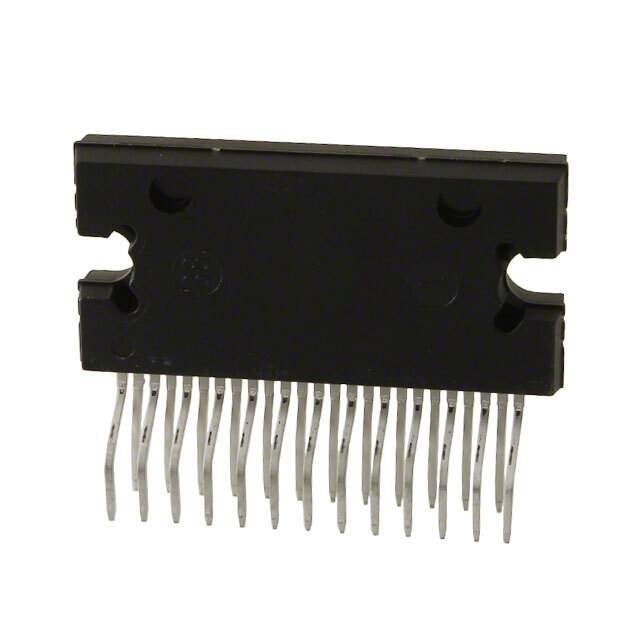

ON Semiconductor LV47009P-E Audio Power Amplifier

The LV47009P-E from ON Semiconductor is a high-performance audio power amplifier designed for top-tier audio applications. This versatile semiconductor device is engineered to deliver exceptional sound quality with high power efficiency, making it an ideal choice for a wide range of consumer electronics, including home theater systems, Hi-Fi audio setups, and active speakers.

Featuring a multi-channel configuration, the LV47009P-E provides ample flexibility for designers to create sophisticated audio systems that require multiple output channels. The integrated circuit is capable of driving a significant amount of power into speakers, ensuring that audio is delivered with clarity, depth, and richness that can satisfy even the most discerning audiophiles.

At the heart of the LV47009P-E lies ON Semiconductor's advanced technology that not only enhances audio performance but also promotes energy efficiency. This is particularly beneficial for applications where power consumption is a critical consideration. The device operates over a wide supply voltage range, providing designers with the versatility needed to incorporate it into various system designs without the need for additional power regulation components.

The LV47009P-E is housed in a compact package that is designed to minimize space on a printed circuit board (PCB), an essential feature for modern electronics where space is at a premium. Despite its small footprint, the device does not compromise on performance or reliability. It is built to withstand the rigors of continuous operation in consumer electronics, ensuring long-term stability and operation.

In summary, the LV47009P-E from ON Semiconductor is a top-of-the-line audio power amplifier that offers a perfect blend of power, performance, and efficiency. With its multi-channel capability, wide voltage range, and compact design, this integrated circuit stands out as a superior choice for creating high-quality audio systems that aim to deliver an immersive listening experience.

Key Features:

  • High-performance audio amplification
  • Multi-channel output for flexible audio system design
  • Energy-efficient operation
  • Wide supply voltage range
  • Compact packaging for space-constrained applications
  • Robust construction for long-term reliability
