Products specifications

Categories Discrete Semiconductor Products
Features Diode Standard 200 V 1A Through Hole Axial
Manufacturer ON Semiconductor
Series SWITCHMODE™
Package Bulk
Part Status Obsolete
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole

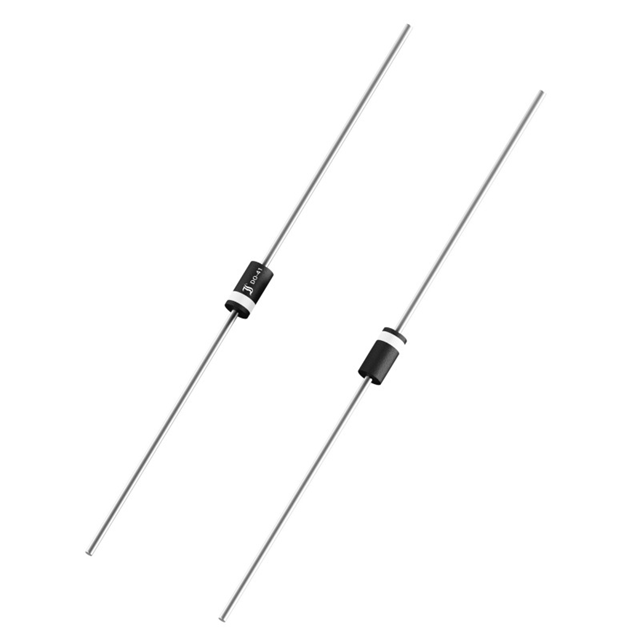

Package DO-204AL, DO-41, Axial
Case / Package Axial
Family Name MUR12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886514-MUR120
Ultra Librarian 3D Model Ultra Librarian MUR120 CAD Model

Description

The MUR120 from ON Semiconductor is a state-of-the-art ultra-fast rectifier designed for use in switching power supplies, inverters, and as free-wheeling diodes. Its superior switching performance and high reliability make it ideal for high-frequency applications.

Key Features

  • Reverse Voltage: 200 volts - ensuring a wide margin for voltage fluctuations in demanding applications.
  • Forward Current: 1.0 ampere - capable of handling moderate current loads efficiently.
  • Recovery Time: Extremely fast, with a typical value of 25 nanoseconds, minimizing power losses and improving efficiency.
  • Low Forward Voltage Drop: Provides higher efficiency by reducing the power dissipation within the diode itself.
  • High Surge Capability: Capable of withstanding high surge currents, which is critical for applications that may experience sudden overcurrent conditions.
  • Temperature Range: Operates within a junction temperature range of -65°C to +175°C, making it suitable for use in harsh environments.
  • Package: Supplied in an axial leaded package that is both compact and robust, facilitating easy integration into a variety of circuit designs.

Applications

The MUR120 is versatile and can be used in a diverse range of applications, including:

  • Power supply management in consumer electronics
  • Automotive systems requiring high reliability and efficiency
  • Industrial machinery with stringent power conversion requirements
  • Telecommunication infrastructure where fast switching is pivotal

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the MUR120 is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability. This ultra-fast rectifier is a testament to ON Semiconductor's dedication to providing components that meet the rigorous demands of modern electronic applications.
