Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Series SWITCHMODE™
Package Tube
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 975 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 50 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number MUR80
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 645898-MUR805
Ultra Librarian 3D Model Ultra Librarian MUR805 CAD Model

Description

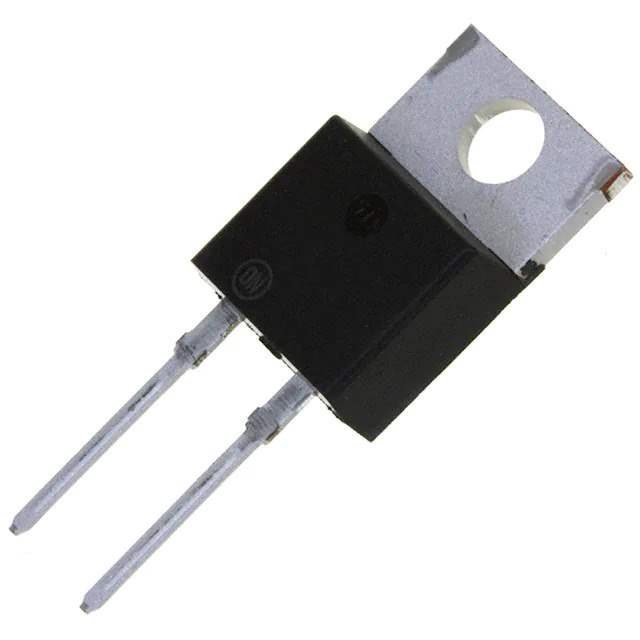

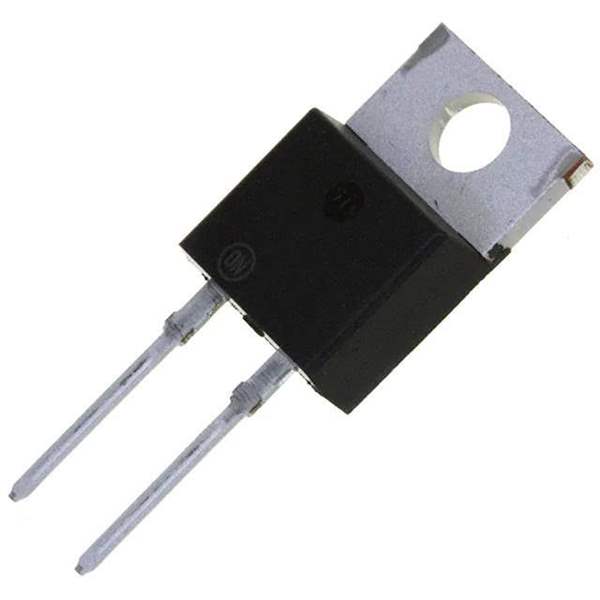

ON Semiconductor MUR805 Ultrafast Rectifier

The ON Semiconductor MUR805 is a state-of-the-art ultrafast rectifier designed for high-efficiency power supply applications where fast switching, low forward voltage drop, and high blocking voltage are required. This device is ideal for use in switch-mode power supplies, converters, free-wheeling diodes, and reverse battery protection.

Key Features:

  • Voltage Ratings: The MUR805 boasts a repetitive peak reverse voltage (V<sub>RRM) of 600V, making it suitable for high-voltage applications.
  • Current Capacity: It has an average forward rectified current (I<sub>F(AV)) of 8A, ensuring it can handle substantial current loads.
  • Ultrafast Recovery Time: With an ultrafast recovery time (t<sub>rr) typically less than 75ns, the MUR805 minimizes energy loss during switching, which is crucial for efficiency.
  • Low Forward Voltage Drop: A low forward voltage drop (V<sub>F) reduces power dissipation and improves efficiency, which is essential for energy-sensitive designs.
  • High Temperature Operation: Capable of operating at junction temperatures ranging from -65°C to +175°C, the MUR805 is designed for environments that experience extreme temperatures.
  • Package: Enclosed in an axial-lead package, it is designed to offer a compact solution with easy installation.

Applications:

  • Power Supply Management
  • DC-DC Converters
  • AC-DC Converters
  • Free-Wheeling Diodes
  • Reverse Battery Protection

The MUR805 is a robust and reliable component that enhances the performance of power electronic systems. With its combination of high-speed switching, thermal efficiency, and high-voltage capabilities, it stands out as a superior choice for designers looking to optimize their power management solutions. ON Semiconductor's commitment to quality ensures that the MUR805 ultrafast rectifier is a dependable and efficient choice for a wide range of electronic applications.
