Products specifications

Category Circuit Protection>TVS - Diodes
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 6.5V
Voltage - Breakdown (Min) 7.22V
Voltage - Clamping (Max) @ Ipp 11.2V
Current - Peak Pulse (10/1000µs) 44.7A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Base Product Number SA6
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298755-SA6V5CA
Ultra Librarian 3D Model Ultra Librarian SA6V5CA CAD Model

Description

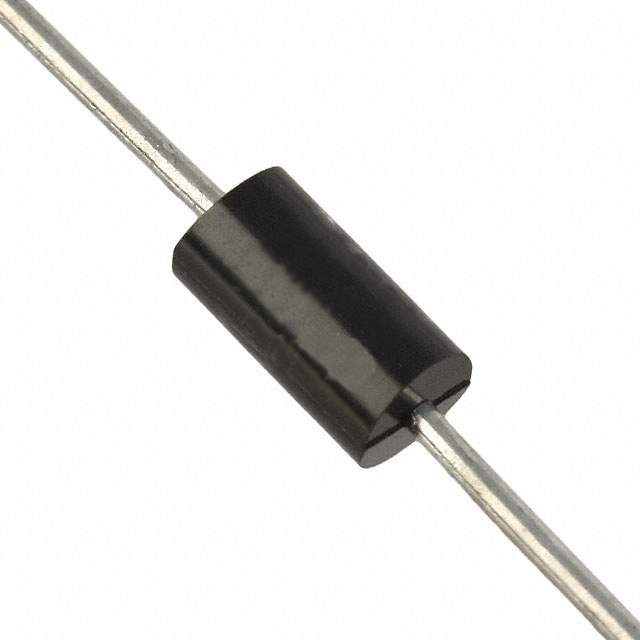

ON Semiconductor SA6V5CA Bi-Directional TVS Diode

The ON Semiconductor SA6V5CA is a robust Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This bi-directional TVS diode is part of ON Semiconductor's extensive line of circuit protection devices, offering reliable performance for a variety of applications.

Key Features

  • Bi-Directional Surge Protection: The SA6V5CA is capable of protecting circuits in both directions, making it ideal for AC applications or bipolar signal lines where the transient could occur in either direction.
  • Peak Pulse Power Dissipation: With a peak pulse power dissipation of 500 Watts at 10/1000µs waveform, this diode can handle significant energy spikes without damage to the protected component.
  • Low Clamping Voltage: The device offers a low clamping voltage, ensuring that the protected circuit is exposed to a minimal voltage overshoot during a transient event.
  • Fast Response Time: The SA6V5CA responds to overvoltage events in picoseconds, providing immediate protection to sensitive components.
  • Operating Junction Temperature: It operates within a wide temperature range, from -55°C to +150°C, making it suitable for harsh environments.
  • Industry Standard Package: The diode comes in an axial-lead package, which is commonly used and easily integrated into a variety of circuit designs.

Applications

The SA6V5CA is designed for use in a range of applications, including:

  • IC and semiconductor protection
  • Industrial systems
  • Consumer electronics
  • Telecommunication devices
  • Power supply units

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the SA6V5CA TVS diode is no exception. It is manufactured to high standards, ensuring that it meets the stringent requirements of industrial and consumer electronic applications. With its robust design and reliable performance, the SA6V5CA is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
