Products specifications

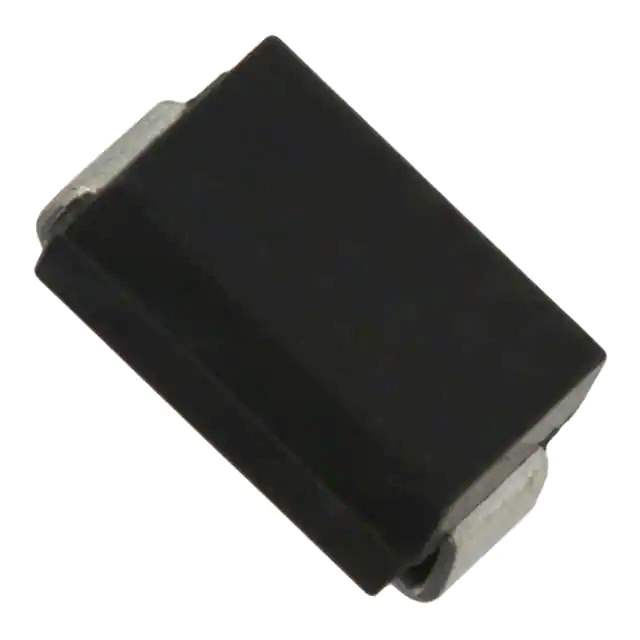

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 90 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 90 V
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SS19
Standard Package 7,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 340455-SS19
Ultra Librarian 3D Model Ultra Librarian SS19 CAD Model

Description

ON Semiconductor SS19 Product Overview

The SS19 from ON Semiconductor is a state-of-the-art Schottky barrier rectifier designed for high-efficiency power management applications. This robust semiconductor device is well-suited for use in a variety of electronic products where low forward voltage drop and fast switching are required. With its compact footprint, the SS19 is an excellent choice for space-constrained applications, offering designers a combination of performance and reliability.

Key Features

  • Low Power Loss/High Efficiency: The SS19 is optimized for low forward voltage drop, which reduces power loss and improves efficiency, making it ideal for high-frequency operations.
  • High Surge Capability: Designed to withstand high surge currents, the SS19 is capable of handling momentary overloads, ensuring reliable performance in demanding situations.
  • Low Thermal Resistance: The device has a low thermal resistance, which facilitates better heat dissipation, contributing to its overall long-term stability and performance.
  • Lead-Free and RoHS Compliant: The SS19 is environmentally friendly, meeting the requirements of the RoHS directive, which restricts the use of certain hazardous substances in electronic equipment.

Applications

The ON Semiconductor SS19 is versatile and can be used in a variety of applications, including:

  • Power supply management in consumer electronics
  • DC-DC converters
  • Free-wheeling diodes in power inverters
  • Reverse battery protection circuits
  • High-frequency rectification in switch-mode power supplies (SMPS)

Technical Specifications

The SS19 boasts impressive technical specifications, including a maximum average rectified current of 1A, a peak repetitive reverse voltage of 90V, and a maximum operating junction temperature range from -55°C to 150°C, making it suitable for a broad range of operating environments.

In summary, the SS19 Schottky barrier rectifier from ON Semiconductor is a high-quality component that offers designers a reliable and efficient solution for their power management needs. Its combination of low forward voltage, high surge capability, and thermal efficiency makes it an excellent choice for modern electronic systems.
