Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Transistor Type PNP - Darlington
Current - Collector (Ic) (Maximum) 10A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) at Ib, Ic 3V at 40mA, 10A
Current - Collector Cutoff (Maximum) 2mA
DC Current Gain (hFE) (Minimum) at Ic, Vce 1000 at 5A, 4V
Maximum Power 125W
Temperature Range - Operating -65°C ~ 150°C
Mounting Style Through Hole

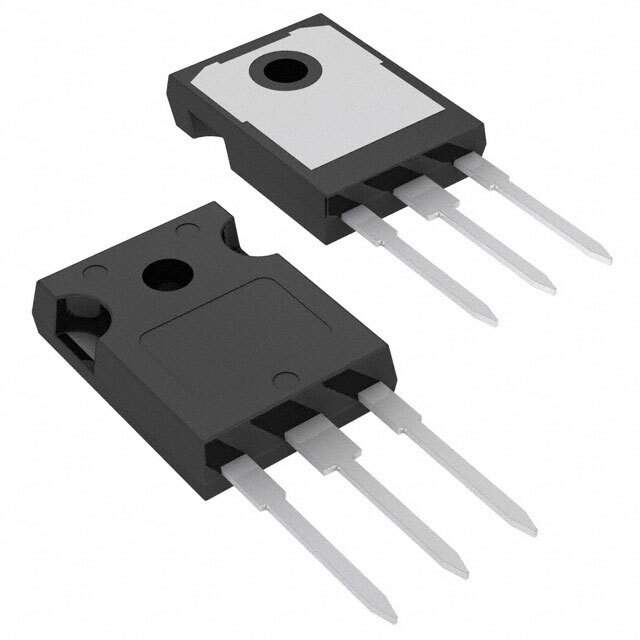

Manufacturer Package TO-247-3
Supplier Device Package TO-247-3
Family Part Number TIP14*
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1267419-TIP147G
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TIP147G CAD Model

Description

The TIP147G is a silicon PNP Darlington power transistor designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This high-power switching transistor is widely used in a variety of applications due to its robust performance and reliability. It is particularly suitable for linear and switching applications.

Key Features

  • High Collector-Emitter Voltage: With a V<sub>CEO of -100V, the TIP147G is capable of handling high voltage applications, making it suitable for a wide range of power supply and amplification tasks.
  • High Current Capability: The transistor can handle collector currents up to -10A, ensuring high current driving capability for heavy loads.
  • High Gain Bandwidth Product: Featuring a high DC current gain (h<sub>FE) of 1000 (minimum) at -3A, the TIP147G ensures high efficiency in amplification applications.
  • Monolithic Construction: The monolithic integration of the Darlington pair with a built-in diode provides a compact design and improved performance.
  • Complementary NPN Type Available: The TIP147G has a complementary NPN partner (TIP142G), allowing for a well-matched push-pull configuration in amplifiers.

Applications

The TIP147G is ideal for a range of applications, including:

  • Power linear and switching circuits
  • Audio amplifiers
  • DC-DC converters
  • Motor control circuits
  • Regulated power supplies

Robustness and Reliability

Constructed in a TO-220 package, the TIP147G offers excellent power dissipation and thermal efficiency, which is critical for maintaining stability and longevity in high-power applications. The device is also characterized for operation from -65 to +150 degrees Celsius, ensuring reliable performance in a wide range of environmental conditions.

Environmental and Regulatory Compliance

ON Semiconductor is committed to environmental stewardship. The TIP147G is designed to meet various international standards, including RoHS compliance, which means it is free from hazardous substances such as lead, ensuring its suitability for use in environmentally sensitive applications.
