Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr onsemi
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1.5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Capacitance @ Vr, F 50pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number US2D
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366808-US2DA
Ultra Librarian 3D Model Ultra Librarian US2DA CAD Model

Description

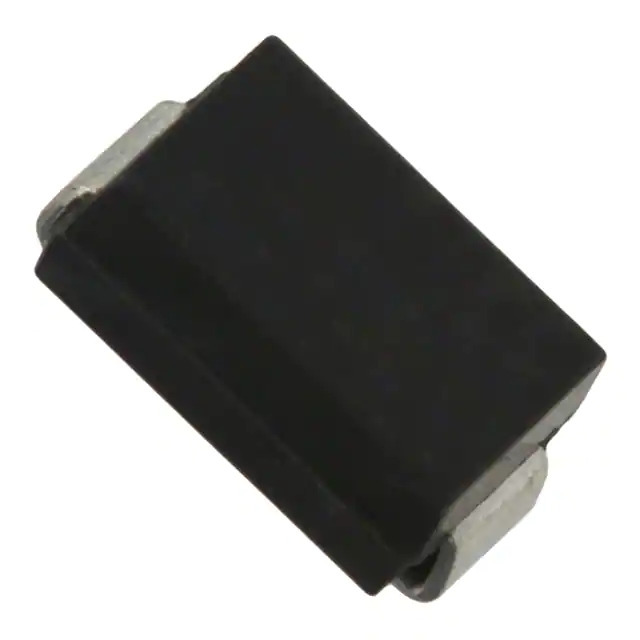

The ON Semiconductor US2DA is a high-efficiency rectifier diode, designed to meet the needs of a wide range of electronic applications. This component is known for its low forward voltage drop and high current capability, making it an ideal choice for power supply designs and other circuits where efficient power conversion is essential.

Key Features

  • Current Rating: The US2DA has a substantial forward continuous current rating of 2 A, allowing it to handle significant levels of current without degradation of performance.
  • Peak Reverse Voltage: It can withstand peak repetitive reverse voltages of up to 200 V, providing a good safety margin for applications that may experience high voltage spikes.
  • Low Forward Voltage Drop: The diode features a low forward voltage drop, which enhances system efficiency by minimizing power loss during the rectification process.
  • Fast Switching Speed: With its fast recovery time, the US2DA is suitable for high-frequency rectification in switched-mode power supplies and other applications that require quick switching.
  • High Temperature Operation: It is capable of operating at junction temperatures ranging from -55°C to +150°C, making it reliable in environments with varying thermal conditions.
  • Package: The diode comes in a DO-214AA (SMB) package, which is compact and surface-mountable, saving space on printed circuit boards.

Applications

The ON Semiconductor US2DA is versatile and can be used in a variety of applications, including:

  • Power supply units
  • Automotive systems
  • Consumer electronics
  • Telecommunications equipment
  • Industrial machinery

Quality and Reliability

ON Semiconductor is a trusted name in the industry, known for its commitment to quality and reliability. The US2DA diode is manufactured to stringent standards, ensuring that it performs to its specifications in a wide range of conditions and applications. Whether you are designing a power supply or looking for a component for high-speed switching, the US2DA from ON Semiconductor is a choice that you can rely on.
