Products specifications Report Issue?

Capacitance 330 µF
Mounting SMD (SMT)
Case / Package Radial
Contact Plating Tin
Diameter 6.3 mm
ESR (Equivalent Series Resistance) 160 mΩ
Height 7.7 mm
Height - Seated (Max) 8.001 mm
Lead Diameter 650 µm
Lead Free Yes
Lead Pitch 1.8 mm
Leakage Current 33 µA
Length 7.7 mm
Life (Hours) 2000 hours
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 8
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 600 mA
Ripple Current (AC) 600 mA
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 10 V
Voltage Rating 10 V
Voltage Rating (DC) 10 V
Win Source Part Number 1097922-EEEFTA331XAP
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEEFTA331XAP CAD Model

Description

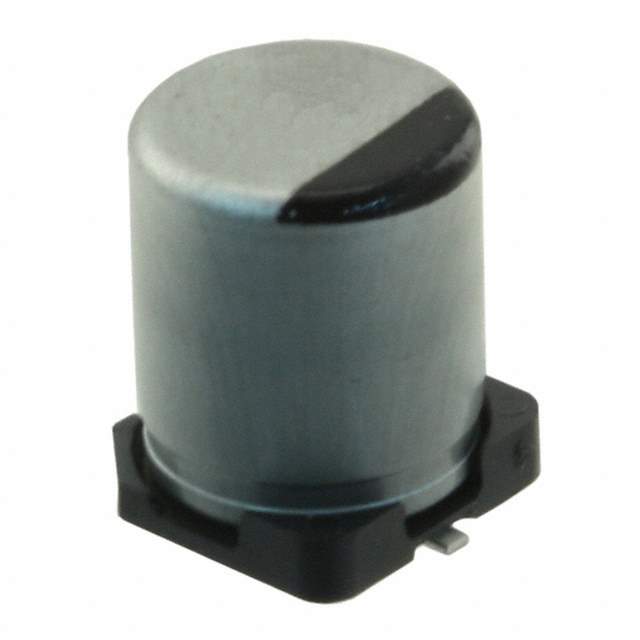

The Panasonic Electric Works EEEFTA331XAP aluminum capacitor is a surface mount component that has a capacitance of 330 µF and a voltage rating of 10 V.

  • Capacitance: 330 µF
  • Voltage Rating: 10 V
  • Height: 7.7 mm
  • Diameter: 6.3 mm
  • Tolerance: 20%
  • Leakage Current: 33 µA
  • Packaging: Cut Tape
  • Mounting: Surface Mount
  • RoHS: Compliant
  • ECCN: EAR99
