Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 100μF
Tolerance ±20%
Voltage Rating 2.5V
ESR 15 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Applications General Purpose
Ripple Current - High Frequency 2.7A @ 100kHz
Height - Seated (Max) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 080906-EEFCD0E101XE
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EEFCD0E101XE CAD Model

Description

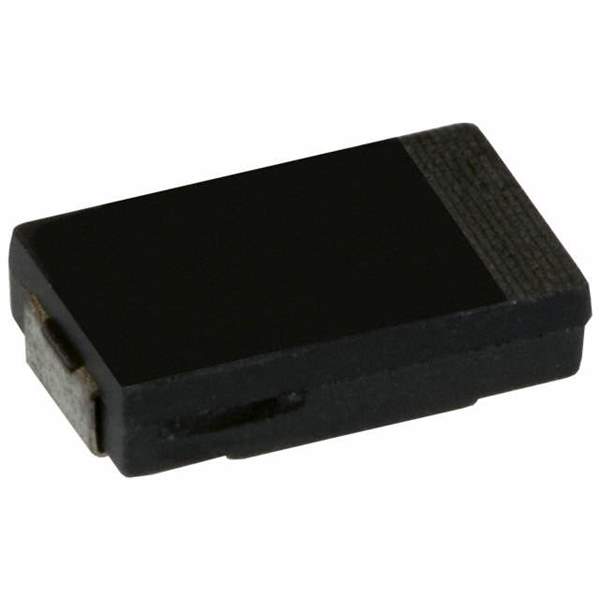

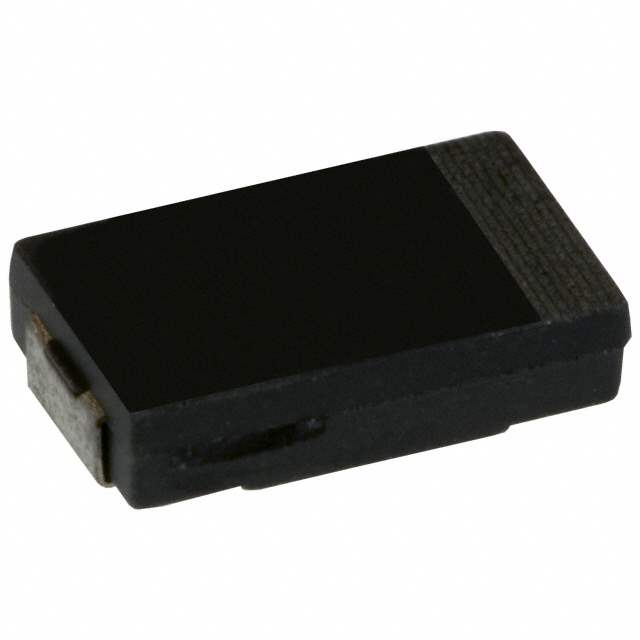

EEFCD0E101XE - Durable Electrolytic Capacitor

The EEFCD0E101XE is perfect for applications where efficiency and compactness are critical. It provides reliable energy storage and delivery, making it ideal for a broad range of electronic designs.

  • Applications:
    • Battery-operated devices
    • Automotive electronics
    • Portable communication devices
    • Embedded system power supplies
  • Features and Benefits:
    • Compact footprint for flexible design needs
    • Excellent ripple performance
    • High endurance for varied power conditions
    • Wide temperature range operation
  • Additional Details:
    • Capacitance: 100μF
    • Voltage Rating: 10V
    • Temperature Range: -40°C to +105°C
