Products specifications Report Issue?

Capacitance 330 µF
Mounting SMD (SMT)
Case / Package 2917
Case Code (Imperial) 2917
Case / Package 7343
Depth 4.3 mm
Dielectric Material Aluminium
Dissipation Factor 6 %
ESR (Equivalent Series Resistance) 6 mΩ
Height 1.4 mm
Height - Seated (Max) 711.2 µm
Leakage Current 66 µA
Length 7.3 mm
Life (Hours) 1000 hours
Material Polymer
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Packaging Tape and Reel
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 3.5 A
Ripple Current (AC) 3.5 A
RoHS Compliant
Termination SMD/SMT
Tolerance 20 %
Voltage 2 V
Voltage Rating 2 V
Voltage Rating (DC) 2 V
Width 4.2926 mm
Win Source Part Number 977437-EEFLT0D331R
Categories Aluminum - Polymer Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEFLT0D331R CAD Model

Description

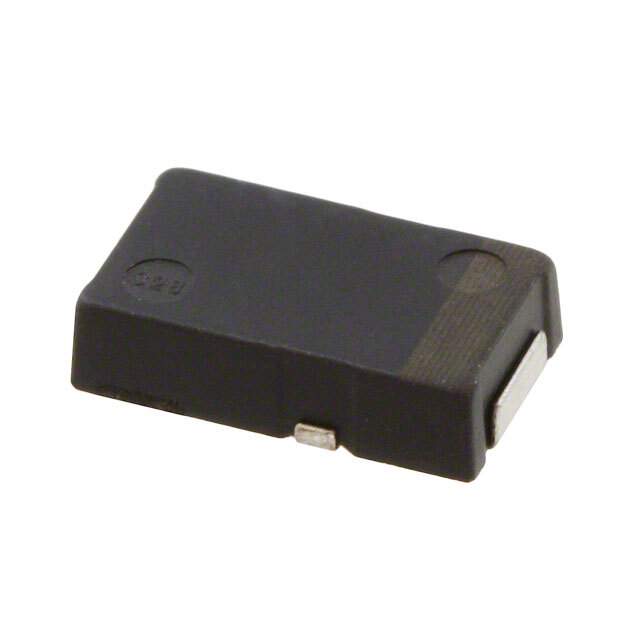

The Panasonic EEFLT0D331R is an aluminum-polymer capacitor that has a capacitance of 330µF and a voltage rating of 2V. Bold the product name (e.g., BAV99S,135 → EEFLT0D331R) and manufacturer (e.g., Nexperia USA Inc. → Panasonic).

  • Capacitance: 330µF
  • Voltage Rating: 2V
  • Tolerance: 20%
  • Leakage Current: 66µA
  • ESR: 6mΩ
  • Ripple Current: 3.5A
  • Mounting Type: Surface Mountable
  • Package: 7343 or 2917
  • Height: 1.4mm
  • Width: 4.2926mm
  • Length: 7.3mm
  • Dissipation Factor: 6%
  • Life: 1000 hours
  • Maximum Operating Temperature: 105°C
  • Minimum Operating Temperature: -55°C
  • Supply and Demand Status: Shortage
