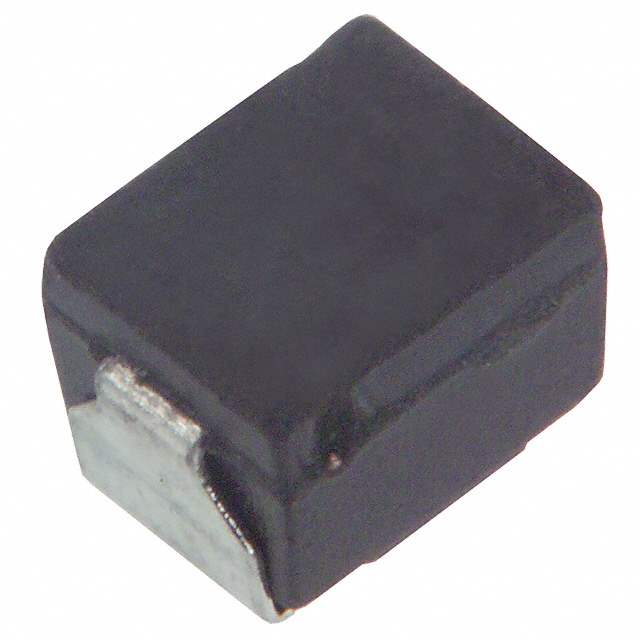

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 330μH
Tolerance ±10%
Current Rating 30mA
DC Resistance (DCR) 7.1 Ohm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 796kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 111176-ELJ-EA331KF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELJ-EA331KF CAD Model

Description

ELJ-EA331KF Compact Inductor

The ELJ-EA331KF is an ideal solution for applications requiring compact and efficient components. With emphasis on minimizing power loss, this inductor is suitable for modern, energy-conscious designs and various functionalities.

  • Features and Benefits:
    • Highly efficient with minimal power loss
    • Space-saving design ideal for dense circuit layouts
    • Low noise production
    • Reliable performance in fluctuating environments
  • Applications:
    • Consumer electronics
    • Automotive electronics
    • Compact power supplies
    • Battery management systems

The ELJ-EA331KF is the perfect choice for any project where space, efficiency, and noise reduction are key considerations.
