Products specifications

Reference Date Code 16+/Rohs
Reference case 5k pcs/Per Reel
Manufacturer Panasonic
Manufacturer Homepage www.panasonic.com/industrial
Win Source Part Number 753109-ERA6AEB153V
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ERA6AEB153V CAD Model

Description

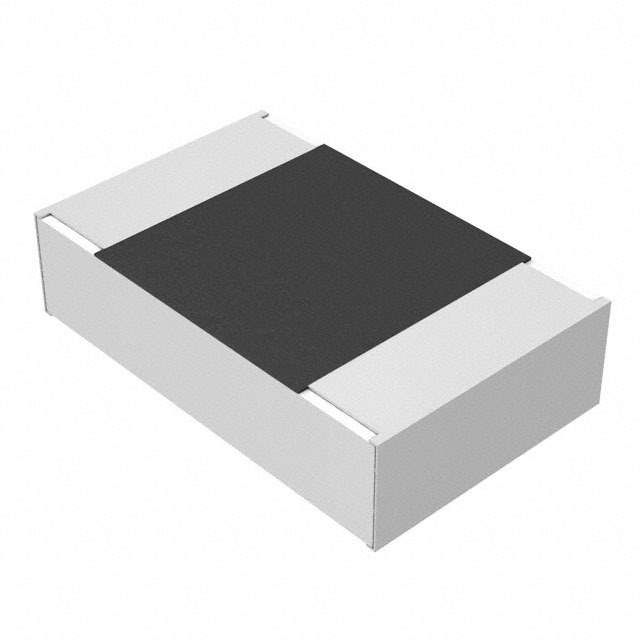

The ERA6AEB153V is a thick film chip resistor from Panasonic, designed for general purpose applications in electronic circuits. This surface mount resistor offers high reliability and stable performance in a compact 0805 package size. It is suitable for automated assembly processes, making it ideal for high-volume production.

Applications:

  • Current limiting in LED circuits.
  • Voltage division in sensor circuits.
  • Pull-up and pull-down resistors in digital circuits.
  • Termination resistors in signal lines.
  • General purpose resistance in electronic devices.

Features:

  • Surface mount 0805 package.
  • Thick film resistive element.
  • High reliability.
  • Stable performance.
  • RoHS compliant.

Benefits:

  • Reduced board space requirements due to small size.
  • Improved circuit performance due to stable resistance.
  • Enhanced system reliability.
  • Suitable for automated assembly.
  • Environmentally friendly.

Additional Details:

The ERA6AEB153V has a resistance value of 15 kΩ with a tolerance of ±0.05%. The temperature coefficient of resistance (TCR) is ±25 ppm/°C. It has a rated power dissipation of 0.125W. The operating temperature range is -55°C to +155°C. The resistor is designed to withstand reflow soldering processes. This resistor provides a reliable and accurate resistance value in a small surface mount package for various electronic applications where high precision is needed.
