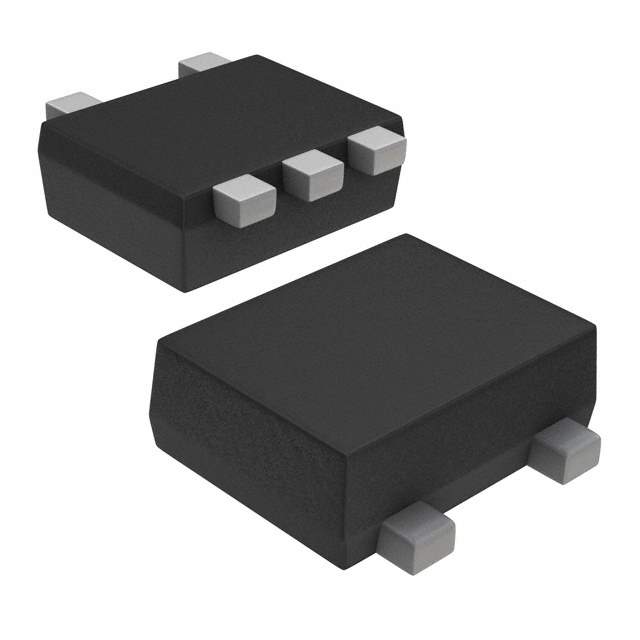

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 4V
Minimum Breakdown Voltage 5.8V
Applications General Purpose
Mounting SMD (SMT)
Case / Package SSMini5-F1
Win Source Part Number 044220-MAZM062H0L
Ultra Librarian 3D Model Ultra Librarian MAZM062H0L CAD Model

Description

The MAZM062H0L from Panasonic Electronic Components is an obsolete (EOL) electronic component with a manufacturer part number of 044220-MAZM062H0L.

  • Component Type: This component is a Zener type circuit protection with 4 unidirectional channels.
  • Mounting: It is mounted on SMD (SMT) and comes in a SSMini5-F1 case / package.
  • STAND-OFF Voltage (Vwm): 4V
  • Minimum Breakdown Voltage: 5.8V
  • Maximum Clamping Voltage: The maximum clamping voltage and peak pulse current(Ippm) are not available.
  • Power Dissipation: The power dissipation - Pd is also not available.
