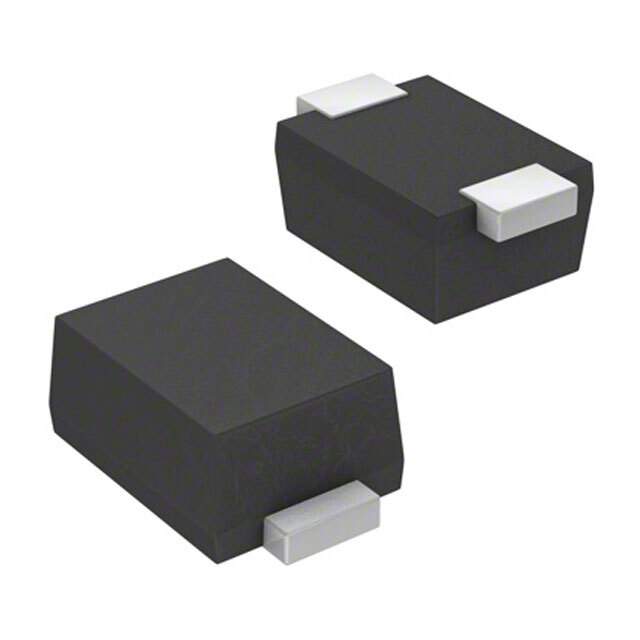

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panjit
Win Source Part Number 1238487-PJSD03TM
Manufacturer Homepage www.panjit.com.tw
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PJSD03TM CAD Model

Description

The PJSD03TM is a surface mount Schottky rectifier diode from Panjit.

  • Maximum Forward Voltage: 0.39V
  • Maximum Reverse Voltage: 30V
  • Features: low leakage current
  • Applications: high-frequency switching power supplies, DC-DC converters
  • Requirement: high efficiency
  • Popularity: medium
  • Supply and Demand: sufficient
