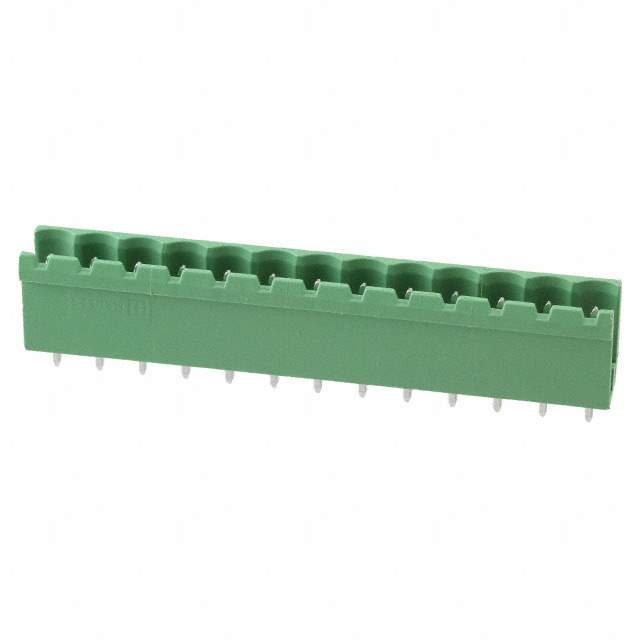

Same model may have multiple batches, images only for reference.

1753657

Name: 1753657
Brand: Phoenix Contact
SKU: 1348709
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1753657
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 13POS VERT 5MM / 13 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON MSTBV
Package	Bulk
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	13
Positions Per Level	13
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	12A
Voltage - IEC	400 V
Current - UL	12 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA) , Nylon
Contact Tail Length	0.154" (3.90mm)
Insulation Height	0.472" (12.00mm)
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1348709-1753657
Ultra Librarian 3D Model	Ultra Librarian 1753657 CAD Model

Description

The 1348709-1753657 from Phoenix Contact is a male pin header with 13 positions per level and 13 levels.

Pitch: 0.197 inches
Shrouding: Both Sides
Orientation: Vertical
Termination Style: Solder
Current Rating: 12A
Voltage Rating (IEC): 400V
Voltage Rating (UL): 300V
Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Contact Mating Finish: Tin
RoHS Compliant: Yes
Packaging: Bulk
Insulation Height: 0.472 inches
Contact Tail Length: 0.154 inches
Applications: Connectors, interconnects, and terminal blocks
