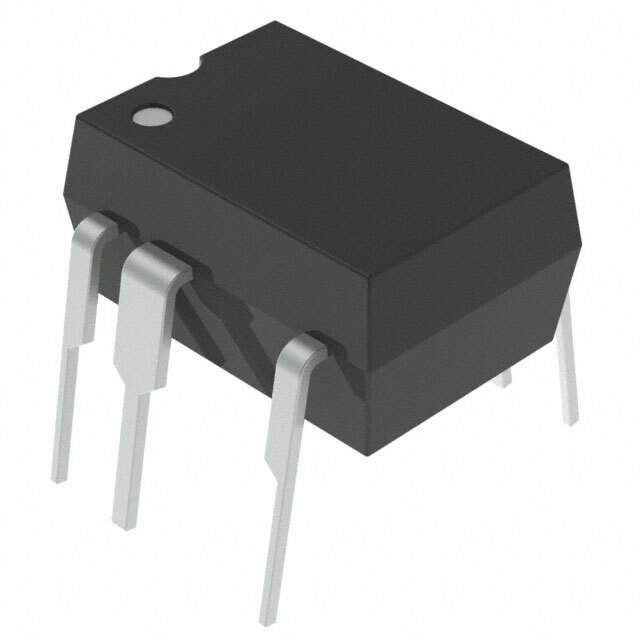

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz
Power (Watts) 48W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package DIP-8C
Mounting Through Hole
Win Source Part Number 1110945-TOP258PG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP258PG CAD Model

Description

The Power Integrations 1110945-TOP258PG is an active electronic component with a power of 48W and an output isolation of isolated.

  • Manufacturer: Power Integrations
  • Product Name: 1110945-TOP258PG
  • Power: 48W
  • Output Isolation: Isolated
  • Internal Switch: Yes
  • Voltage Breakdown: 700V
  • Topology: Flyback
  • Duty Cycle: 78%
  • Frequency of Switching: 66kHz
  • Fault Protection: Current limiting, over temperature, and over voltage protection
  • Case/Package: DIP-8C
  • Mounting Type: Through hole
