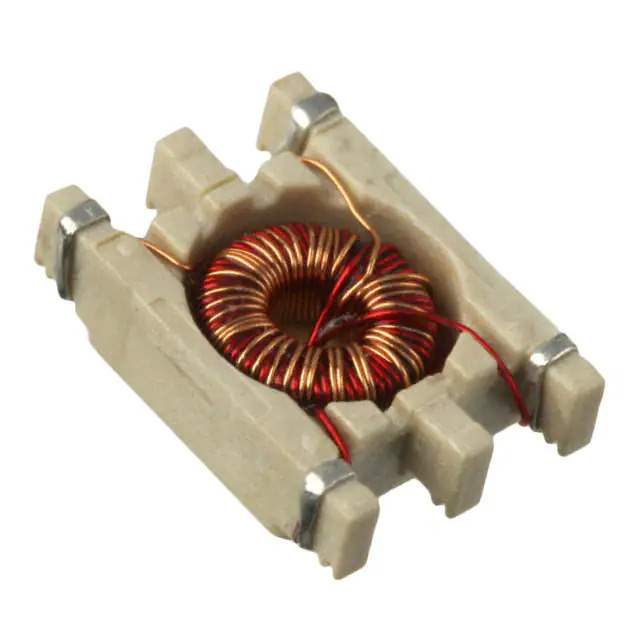

PA2001NL Real Image
Same model may have multiple batches, images only for reference.

PA2001NL

Part No PA2001NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 403UH / 403μH Pulse Transformer 1:1 Surface Mount
Datasheet
PA2001NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Inductance 403µH
ET (Volt-Time) 12VµS
Mounting Type Surface Mount
Size / Dimension 0.340" L x 0.265" W (8.64mm x 6.73mm)
Height - Seated (Max) 0.098" (2.49mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 85 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 929941-PA2001NL
Ultra Librarian 3D Model Ultra Librarian PA2001NL CAD Model

Description

The 929941-PA2001NL is a pulse transformer designed for use in transformers.

  • Inductance: 403µH
  • Temperature Range: -40°C to 130°C
  • Mounting Type: Surface Mount
  • Size: 0.340" L x 0.265" W (8.64mm x 6.73mm)
  • Package: Tube
  • Standard Package: 85 pcs
  • ECCN: EAR99
  • REACH Status: Unaffected
  • MSL Level: 1 (Unlimited)
