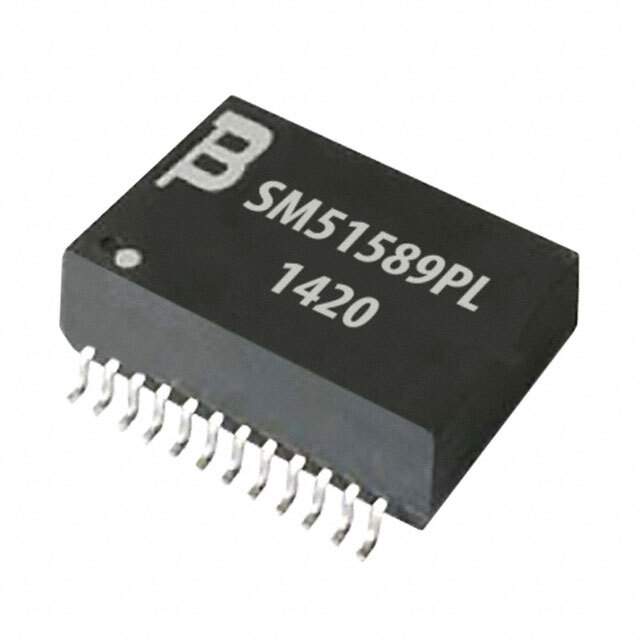

SM51589PEL Real Image SM51589PEL real image15732 SM51589PEL real image15733
SM51589PEL Real Image SM51589PEL real image15732 SM51589PEL real image15733
Same model may have multiple batches, images only for reference.

SM51589PEL

Part No SM51589PEL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT 350UH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Transformer Type LAN 10/100/1000 Base-T
Inductance 350μH
Mounting Style SMD
Dimension 0.691" L x 0.480" W (17.55mm x 12.20mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Temperature Range - Operating -40°C ~ 85°C
Part Number Series SM515
Manufacturer Pack Quantity 400
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809469-SM51589PEL
Ultra Librarian 3D Model Ultra Librarian SM51589PEL CAD Model

Description

The SM51589PEL LAN transformer from Bourns Inc. is a LAN transformer.

  • Mounting Style: SMD
  • Packaging: Reel
  • Inductance: 350μH
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.691" L x 0.480" W (17.55mm x 12.20mm)
  • Maximum Seated Height: 0.236" (6.00mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 400
  • MSL Level: 1 (Unlimited)
