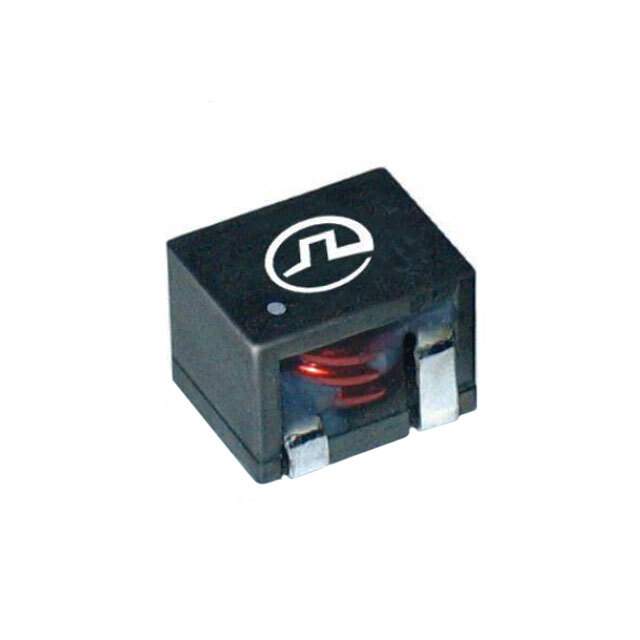

PG1096.252NLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PG1096NL
Package Tape & Reel
Type Wirewound
Inductance 2.25 µH
Tolerance ±20%
Current Rating (Amps) 45 A
Current - Saturation (Isat) 55A
Shielding Unshielded
DC Resistance (DCR) 1.2mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 1.024" L x 1.024" W (26.00mm x 26.00mm)
Height - Seated (Max) 0.583" (14.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names PG1096.252NLT-ND,553-3731-2,553-3731-1,-PG1096.252NLT,553-3731-6
Standard Package 60
Win Source Part Number 1176680-PG1096.252NLT
Ultra Librarian 3D Model Ultra Librarian PG1096.252NLT CAD Model

Description

The Pulse PG1096.252NLT is a wirewound fixed inductor that falls under the category of electronic components.

  • Win Source Part Number: 1176680-PG1096.252NLT
  • Series: PG1096NL
  • Height: 0.583 inches
  • Tolerance: ±20%
  • DC Resistance: 1.2mOhm Max
  • Current Rating: 45A
  • Package/Case: Non-Standard
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 130°C
  • REACH: Unaffected
  • ECCN: EAR99
