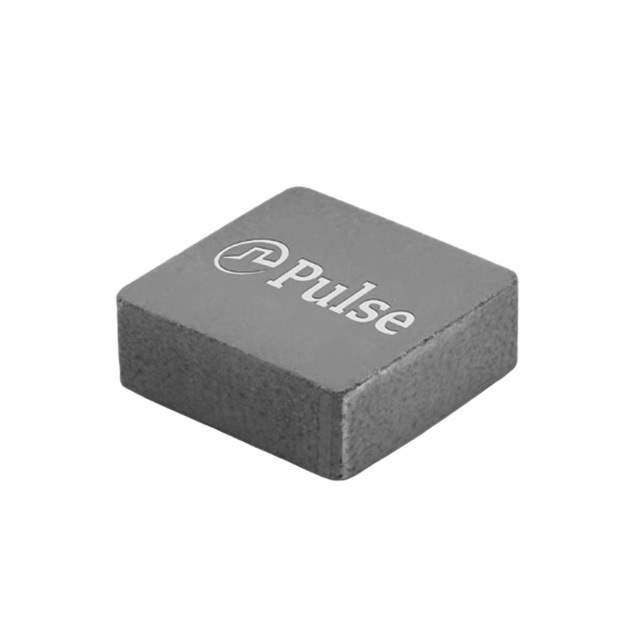

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PM2203.XXXNLT
Package Tape & Reel (TR)
Inductance 600 nH
Tolerance ±20%
Current Rating (Amps) 17.7 A
Current - Saturation (Isat) 22A
Shielding Unshielded
DC Resistance (DCR) 4.52mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package SMD
Dimension 0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max) 0.122" (3.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 2,000
Win Source Part Number 1166305-PM2203.601NLT
Ultra Librarian 3D Model Ultra Librarian PM2203.601NLT CAD Model

Description

The PM2203.XXXNLT series inductors from Pulse Electronics Power are fixed inductors with an inductance of 600nH and a ±20% tolerance.

  • Rating: AEC-Q200
  • Maximum Current Rating: 17.7A
  • Shielding: Unshielded
  • Package/Case: Non-Standard
  • DC Resistance (DCR): 4.52mOhm Maximum
  • Height - Seated (Max): 0.122" (3.10mm)
  • Operating Temperature Range: -55°C to 155°C
