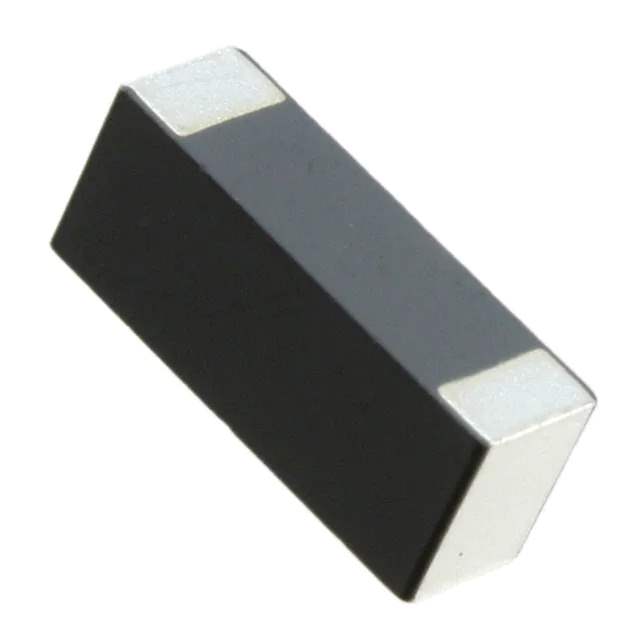

W3009 Real Image
Same model may have multiple batches, images only for reference.

W3009

Part No W3009
Manufacturer Pulse
Catalog RF Antennas
Description RF ANT 1.575GHZ CHIP SOLDER SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Pulse
Package Tape & Reel
Product Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Frequency Range 1.565GHz ~ 1.585GHz
Antenna Type Chip
Number of Bands 1
Return Loss -10dB
Gain 3dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.157" (4.00mm)
Applications GPS
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.4040
Win Source Part Number 401166-W3009
Ultra Librarian 3D Model Ultra Librarian W3009 CAD Model

Description

The Pulse RF Antenna 401166-W3009 is a tape & reel packaged electronic component in the RF and Wireless - RF Antennas category.

  • Termination: Solder
  • Ingress Protection: No
  • Application: GPS
  • Package: 500 pieces
  • Frequency Range: 1.565GHz ~ 1.585GHz
  • Frequency: 1.575GHz
  • Height: 0.157" (4.00mm)
  • Gain: 3dBi
  • Antenna Type: Chip
  • Frequency Group: UHF (1GHz ~ 2GHz)
  • ECCN: 7A994
  • REACH: Unaffected
  • Manufacturer: Pulse
  • Status: Active
