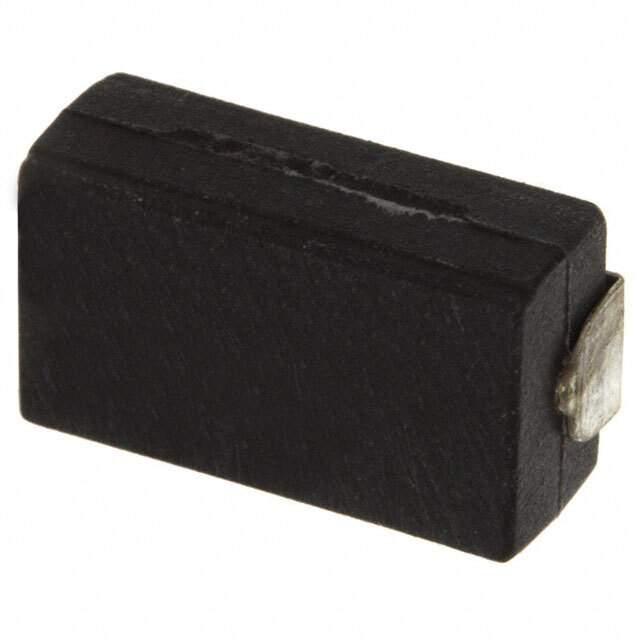

S4-15RF1 Real Image
Same model may have multiple batches, images only for reference.

S4-15RF1

Part No S4-15RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 15 OHM 1% 2W 4525
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Riedon
Packaging Reel
Resistance 15 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Manufacturer Package 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Number of Terminations 2
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809077-S4-15RF1
Ultra Librarian 3D Model Ultra Librarian S4-15RF1 CAD Model

Description

The 809077-S4-15RF1 wirewound resistor from Riedon is a current sense component.

  • Resistance: 15 ohms
  • Power Rating: 2W
  • Popularity: Medium
  • Supply and Demand: Limited
  • Features: Flame proof, moisture resistant, pulse withstanding, safety rated
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Dimension: 0.449 inches L x 0.252 inches W (11.40mm x 6.40mm)
  • Height Seated (Maximum): 0.197 inches (5.00mm)
