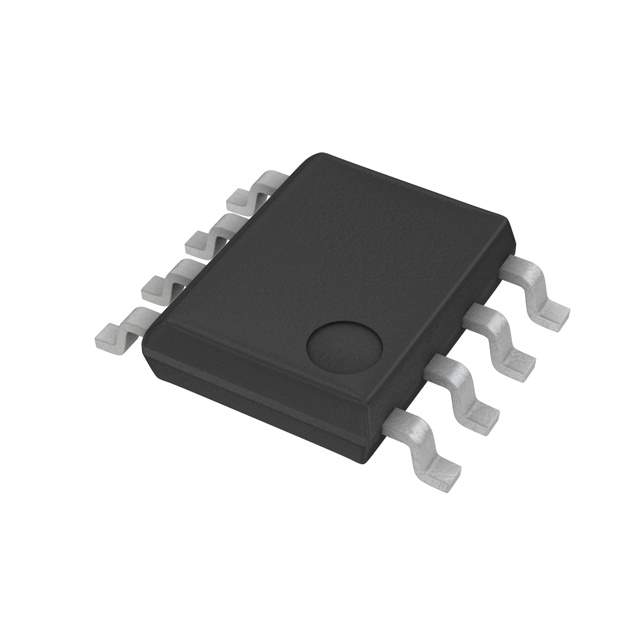

BD2066FJ-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Switch Type USB Switch
Number of Outputs 2
Output Type N-Channel
Voltage - Load 2.7 V to 5.5 V
Supply Voltage - Operating Not Required
Current - Output (Max) 1.5A
Rds On (Typ) 80 mOhm
Input Type Non-Inverting
Features Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 8-SOP-J
Win Source Part Number 1022862-BD2066FJ-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD2066FJ-E2 CAD Model

Description

The BD2066FJ-E2, an N-Channel output type USB switch, is an integrated circuit manufactured by Rohm Semiconductor.

  • Component Category: Integrated Circuit
  • Output Type: N-Channel
  • Package: 8-SOP-J
  • On-Resistance (Rds On): 80 mOhm (typical)
  • Fault Protection: Fixed current limiting
  • Over-Temperature Protection: Yes
  • Temperature Range: -40°C to 85°C (TA)
  • Status: Active
