Same model may have multiple batches, images only for reference.

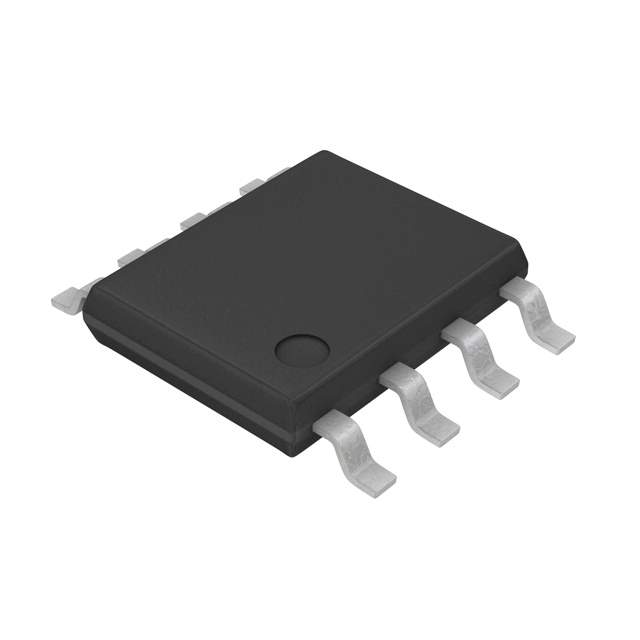

BD82065FVJ-E2 Real Image
Same model may have multiple batches, images only for reference.

BD82065FVJ-E2

Part No BD82065FVJ-E2
Manufacturer Rohm Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description 1ch High Side Switch ICs for USB Devices and Memory Cards
Datasheet
BD82065FVJ-E2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Switch Type USB Switch
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 2.7 V ~ 5.5 V
Current - Output (Maximum) 1.5A
Rds On (Typ) 70 mOhm
Features Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature Range -40°C ~ 85°C (TA)
Package 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Manufacturer Package 8-TSSOP-BJ
Win Source Part Number 1152885-BD82065FVJ-E2
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BD82065
Introduction Date October 04, 2009
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BD82065FVJ-E2 CAD Model

Description

The Rohm Semiconductor BD82065FVJ-E2 is an integrated circuit (IC) that is ideal for on/off interface and USB switch applications.

  • Features: Slew rate controlled and status flag
  • Output Configuration: High side
  • Voltage Load Range: 2.7V to 5.5V
  • Maximum Output Current: 1.5A
  • Fault Protection: Current limiting (fixed), over temperature, reverse current, and UVLO
  • Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Typical Rds On: 70 mOhm
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2023
