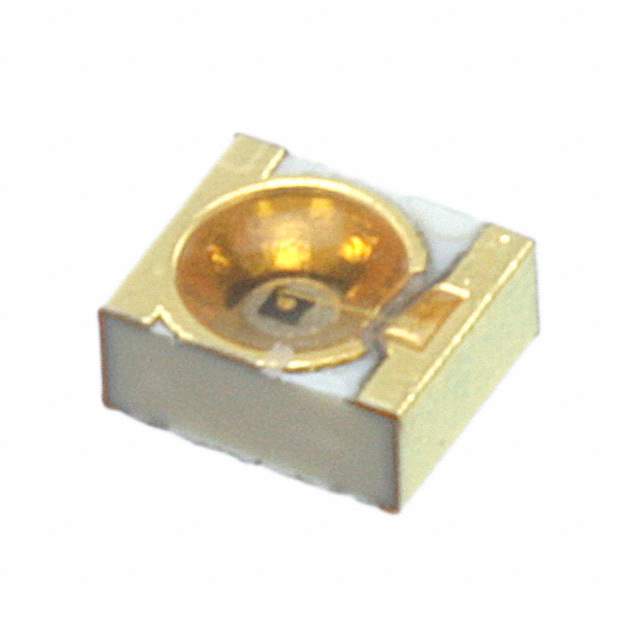

SIM-040ST Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Type Infrared (IR)
Current - DC Forward (If) (Maximum) 100mA
Radiant Intensity (Ie) Min at If 20mW/sr at 100mA
Wavelength 870nm
Voltage - Forward (Vf) (Typ) 1.7V
Viewing Angle 40°
Orientation Top View
Temperature Range - Operating -25°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806797-SIM-040ST
Ultra Librarian 3D Model Ultra Librarian SIM-040ST CAD Model

Description

The Rohm Semiconductor SIM-040ST is an infrared (IR) type component from Rohm Semiconductor.

  • Orientation: Top View
  • Viewing Angle: 40°
  • Voltage-Forward (Vf): 1.7V
  • Wavelength: 870nm
  • Temperature Range: -25°C to 85°C
  • Current-DC Forward (If): 100mA
  • Package Type: Reel
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (Unlimited)
  • Radiant Intensity (Ie) min @ If: 20mW/sr @ 100mA
