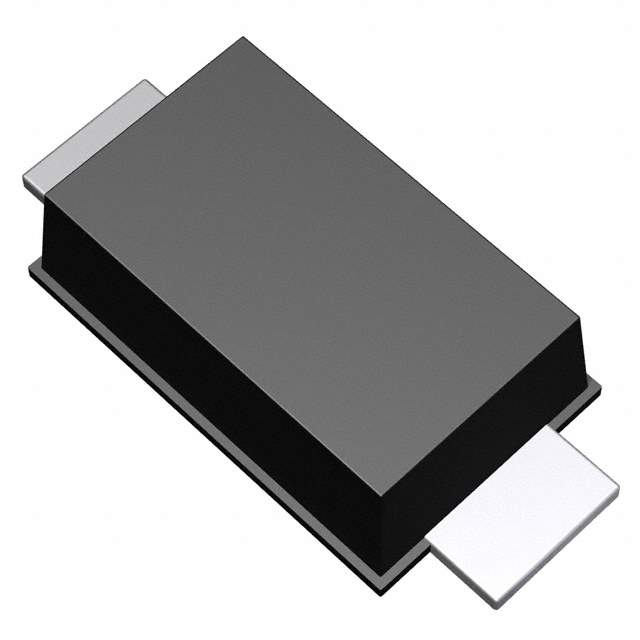

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 9V (Max)
Voltage - Breakdown (Min) 10V
Voltage - Clamping (Max) @ Ipp 15.4V
Current - Peak Pulse (10/1000µs) 13A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-123F
Supplier Device Package PMDU
Base Product Number SMF9V0
Other Names 846-SMF9V0DKR,846-SMF9V0TR,846-SMF9V0CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298611-SMF9V0TR
Ultra Librarian 3D Model Ultra Librarian SMF9V0TR CAD Model

Description

The SMF9V0TR is a Zener diode circuit protection component manufactured by Rohm Semiconductor.

  • Packaging: tape and reel package
  • Standard Package: 3,000
  • Suitable for: general-purpose applications
  • Channel: unidirectional channel of 1
  • Voltage Reverse Standoff: 9V (Max)
  • Voltage Breakdown: 10V (Min)
  • Voltage Clamping @ Ipp: 15.4V
  • Power Peak Pulse: 200W
  • Current Peak Pulse (10/1000µs): 13A
  • Mounting: SMD (SMT) mounting
  • Temperature Range: 150°C (TJ)
  • ECCN: EAR99
  • REACH: currently affected by REACH
  • HTSUS: 8541.10.0080
