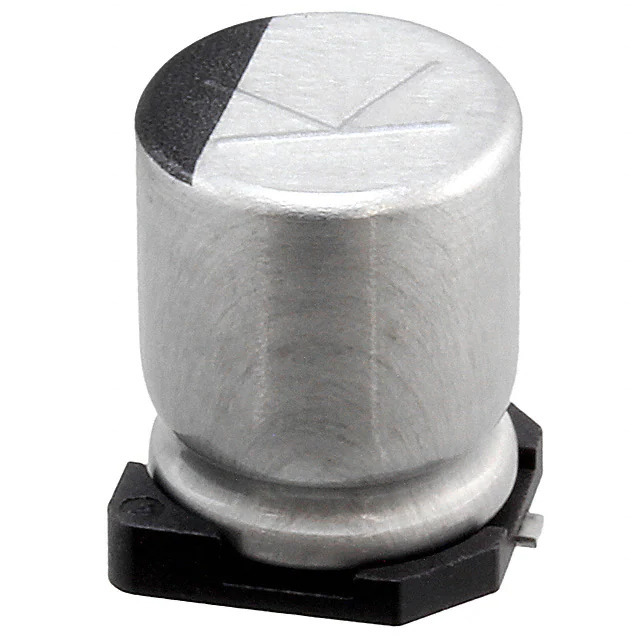

10TKV680M8X10.5 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TKV
Package Tape & Reel
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 80mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360285-10TKV680M8X10.5
Ultra Librarian 3D Model Ultra Librarian 10TKV680M8X10.5 CAD Model

Description

The Rubycon TKV series aluminum electrolytic capacitor is a surface mount component designed for automotive applications. With a capacitance of 680 µF and a voltage rating of 10 V, it offers reliable performance in a wide temperature range of -55°C to 105°C.

  • Series: TKV
  • Capacitance: 680 µF
  • Voltage Rating: 10 V
  • Application: Automotive
  • Temperature Range: -55°C to 105°C
  • Tolerance: ±20%
  • ESR: 80mOhm @ 100kHz
  • Ripple Current (Low Frequency): 510 mA @ 120 Hz
  • Ripple Current (High Frequency): 850 mA @ 100 kHz
  • Size: 0.315" Dia (8.00mm)
  • Height: 0.413" (10.50mm)
  • Product Status: Active
  • REACH Status: Compliant
  • ECCN: EAR99
  • Mounting Type: Surface Mount
  • Package Type: SMD
