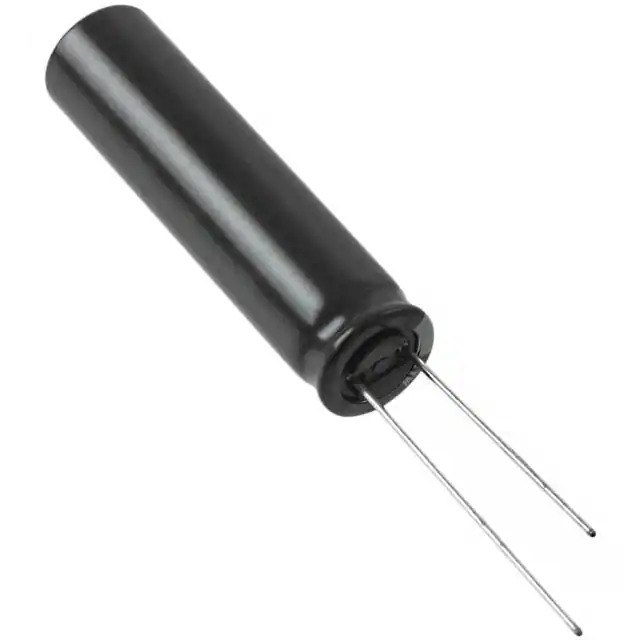

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TXW
Package Bulk
Product Status Active
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.3 A @ 120 Hz
Ripple Current @ High Frequency 2.6 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358037-80TXW270MEFC10X40
Ultra Librarian 3D Model Ultra Librarian 80TXW270MEFC10X40 CAD Model

Description

The Rubycon TXW series aluminum electrolytic capacitor is a reliable and high-quality component for various electronic applications.

  • Capacitance: 270 μF
  • Voltage Rating: 80 V
  • Application: General Purpose
  • Capacitance Tolerance: ±20%
  • Diameter: 0.394 inches (10.00mm)
  • Height: 1.654 inches (42.00mm)
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Lifetime: 10,000 hours @ 105°C
  • Ripple Current (Low Frequency): 1.3 A @ 120 Hz
  • Ripple Current (High Frequency): 2.6 A @ 100 kHz
  • Polarization: Polarized
  • Polarization Feature: Yes
  • Manufacturer: Rubycon
