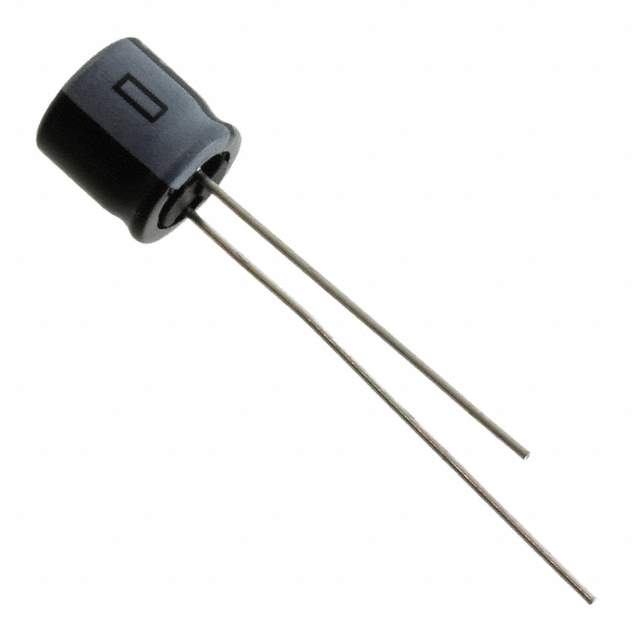

25MS547MEFC6.3X5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MS5
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 65 mA @ 120 Hz
Ripple Current @ High Frequency 97.5 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.256" (6.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 5,000
Win Source Part Number 989627-25MS547MEFC6.3X5
Ultra Librarian 3D Model Ultra Librarian 25MS547MEFC6.3X5 CAD Model

Description

The MS5 series capacitor is an aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 25 V.

  • Capacitance: 47 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Ripple Current: 65 mA @ 120 Hz and 97.5 mA @ 10 kHz
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Seated Height: 0.256 inches
  • Lead Spacing: 0.098 inches
  • Temperature Range: -40°C to 85°C
  • Lifetime: 1000 hours @ 85°C
