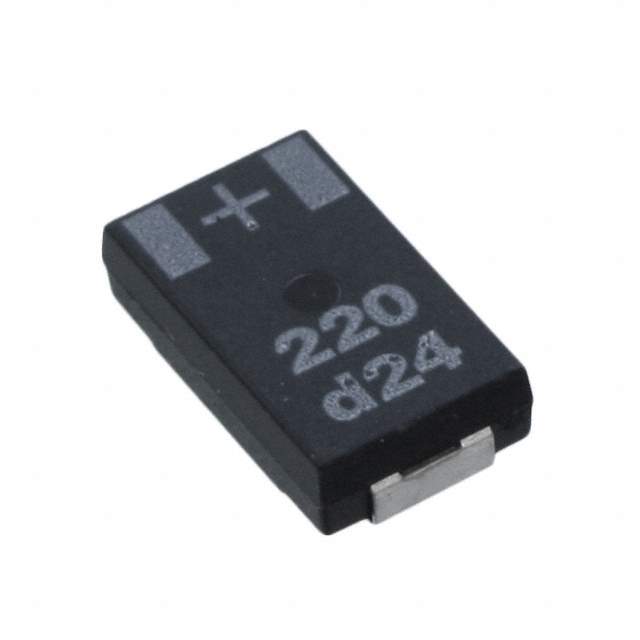

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series PC-CON, SXE
Packaging Reel package
Part Status Obsolete(EOL)
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage Rating 2V
ESR (Equivalent Series Resistance) 9 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - High Frequency 3A @ 100kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD
Package 2917 (7343 Metric)
Win Source Part Number 763043-2SXE220M
Family Name SXE
ECCN EAR99
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SXE220M CAD Model

Description

The 2SXE220M is a polymer capacitor manufactured by Rubycon.

  • Manufacturer: Rubycon
  • Capacitance: 220μF
  • Voltage Rating: 2V
  • Tolerance: ±20%
  • Ripple Current: 3A @ 100kHz
  • ESR (Equivalent Series Resistance): 9 mOhm
  • Height: 0.075" (1.90mm)
  • Mounting: Surface mount technology (SMT)
  • Lifetime: 2000 Hrs @ 105°C
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
