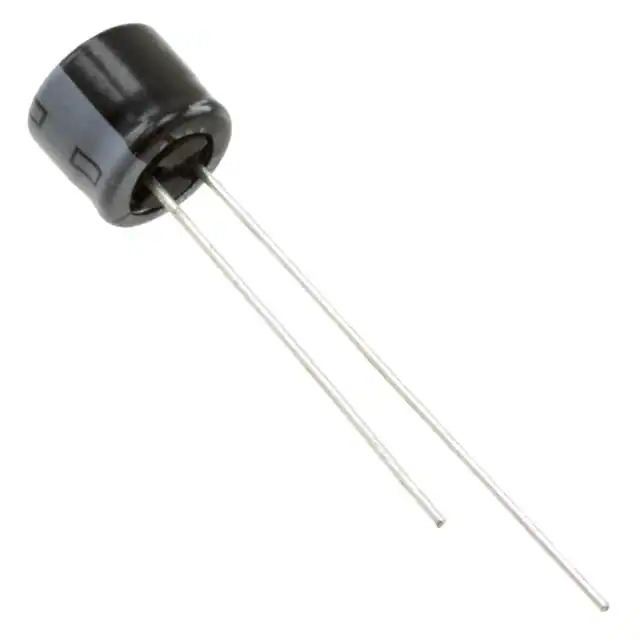

35MH522MEFC6.3X5 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MH5
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 48 mA @ 120 Hz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.256" (6.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357775-35MH522MEFC6.3X5
Ultra Librarian 3D Model Ultra Librarian 35MH522MEFC6.3X5 CAD Model

Description

The Rubycon MH5 series is a bulk aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 35 V.

  • Capacitance: 22 µF
  • Voltage Rating: 35 V
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 48 mA @ 120 Hz
  • Lifetime: 1000 hours @ 105°C
  • Polarization: Polarized
  • Size: 0.248" (6.30mm) diameter x 0.256" (6.50mm) height
  • Application: General Purpose
  • Mounting Type: Through Hole
  • Manufacturer: Rubycon
  • Product Status: Active
  • REACH: Unaffected
