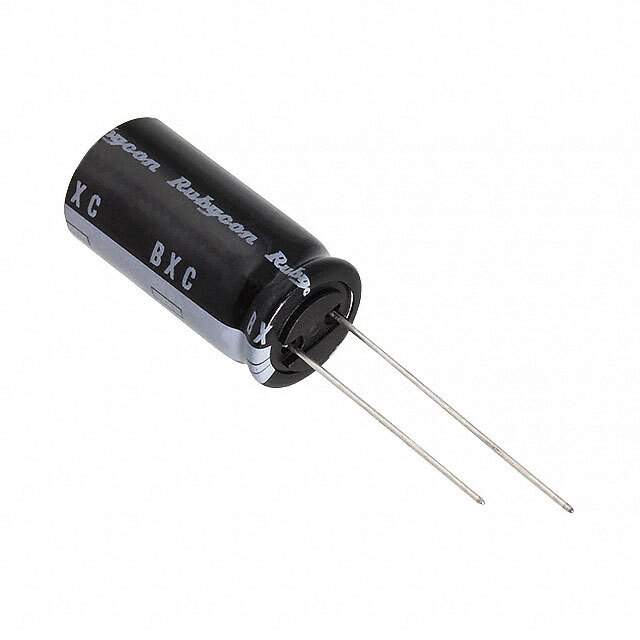

450BXC47MEFC18X25 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 480 mA @ 120 Hz
Ripple Current @ High Frequency 1.2 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-4009,450BXC47MEFC18X25-ND
Standard Package 500
Win Source Part Number 1330174-450BXC47MEFC18X25
Ultra Librarian 3D Model Ultra Librarian 450BXC47MEFC18X25 CAD Model

Description

The Rubycon 1330174-450BXC47MEFC18X25 is an aluminum electrolytic capacitor that has a capacitance of 47 µF and a voltage rating of 450 V.

  • Capacitance: 47 µF
  • Voltage Rating: 450 V
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Height: 1.063" (27.00mm)
  • Tolerance: ±20%
  • ESR: Not Specified
  • Polarization: Polar
  • Package/Case: Radial, Can
  • Temperature Range: -25°C ~ 105°C
  • Lifetime: 12000 Hrs @ 105°C
  • Application: General-Purpose
