Products specifications

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLJ
Package Tape & Box (TB)
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.095 A @ 120 Hz
Impedance 46 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357876-63ZLJ330MT810X25
Ultra Librarian 3D Model Ultra Librarian 63ZLJ330MT810X25 CAD Model

Description

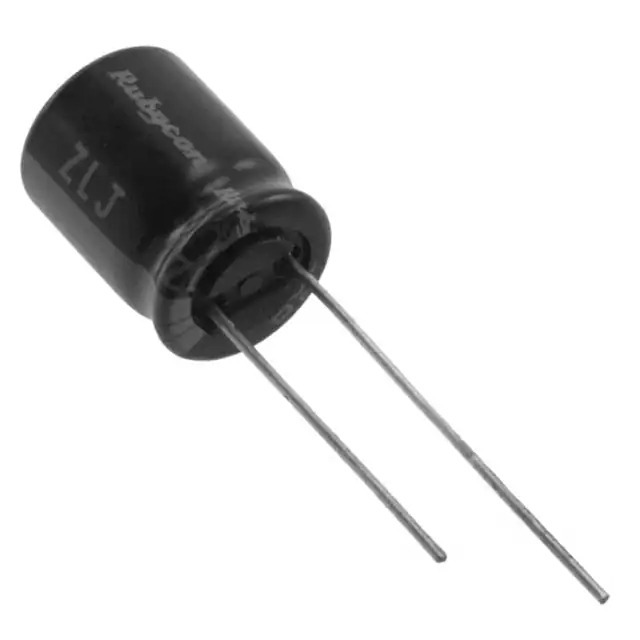

The Rubycon ZLJ series aluminum electrolytic capacitor is a reliable and high-quality component for various electronic applications.

  • Capacitance: 330 μF
  • Voltage Rating: 63 V
  • Capacitance Tolerance: ±20%
  • Diameter: 0.394 inches (10.00mm)
  • Height: 1.063 inches (27.00mm)
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Lifetime: 10,000 hours @ 105°C
  • Impedance: 46 mOhms
  • Ripple Current: 1.095 A @ low frequency (120 Hz)
  • Polarization: Polarized
